MSE Supplies offers High Quality Gold (Au) Thin Films with a variety of thickness and substrates. We use 99.999% pure gold and titanium in our coating process, and coat only those substrates that are stable under high vacuum. This eliminates concerns about contamination from previous coating runs.

Applications include:

Sensors & Microarrays: Chromium-free gold films are the best option for preserving surface reactivity when you want to create self-assembled monolayers for sensor development and for attachment of bioactive probe molecules.
Scanning Probe Microscopy: To minimize surface roughness, consider our ultra-flat template-stripped gold (reverse mounted) glass chips, available mounted on silicon or mica.
Mirrors: For efficient reflection/total internal reflection systems in optical instruments
Cell Culture: We use of only pure metals in our coater avoids contamination with traces of other metals or chemicals that may be toxic to cultured cells. If you are having difficulty culturing cells on gold films made in coaters used by others, consider using the highest purity gold films from us.
Surface Plasmon Resonance: The coating process permits precise control of gold deposition rates and thus surface roughness. This ensures the highest level of control over the thickness and nanometer-scale flatness of gold films, for the best possible surface plasmon resonance responses. Call us for details on how we can help you optimize your SPR performance.

Features of our coating process include:

99.999% Pure gold
Plasma-cleaned surfaces
Electron-beam deposited gold films
Optional titanium adhesion layer
Dedicated cleanroom fabrication environment
Strict quality control measurements

Availability

SKU#	Substrate Form	Substrate Size	Film Thickness (nm)	Pieces/Pack
AU.0500.CSS	Coverslip	22x22x0.13-0.16 mm	50	12
AU.0100.CSR24	Coverslip	Φ15x0.13-0.16 mm	10	24
AU.2000.MC1	Mica	1"x1.5"x0.16-0.18 mm	200	1
AU.2000.MC2	Mica	1"x3"x0.16-0.18 mm	200	1
AU.0500.SL0	Silicon Wafer	Φ100x0.525 mm	50	1
AU.0500.SL1	Silicon Wafer	Φ100x0.525 mm	50	3
AU.1000.SL0	Silicon Wafer	Φ100x0.525 mm	100	1
AU.1000.SL1	Silicon Wafer	Φ100x0.525 mm	100	3
AU.1000.SL2	Silicon Wafer	Φ100x0.525 mm	100	12
AU.1000.SLC_10mm	Silicon Chip	10x10x0.525 mm	100	20
AU.0100.GC10	Aluminosilicate Glass Chip	10x10x0.7 mm	10	20
AU.0500.GC10	Aluminosilicate Glass Chip	10x10x0.7 mm	50	20
AU.0500.GC10	Aluminosilicate Glass Chip	10x10x0.7 mm	100	20
AU.0100.ALSI	Aluminosilicate Glass Slides	1″x3″x0.7 mm	10	5
AU.0500.ALSI	Aluminosilicate Glass Slides	1″x3″x0.7 mm	50	5
AU.1000.ALSI	Aluminosilicate Glass Slides	1″x3″x0.7 mm	100	5
AU.2000.MTSG	Template Stripped Gold Chips - Mica	1 cmx1 cm glass chips adhered to a 200 nm gold-coated piece of mica	200	5
AU.1000.SWTSG	Template Stripped Gold Chips - Silicon Wafer	1 cmx1 cm glass chips adhered to a 100 nm gold-coated prime grade silicon wafer	100	20
SPR-1000-050	Surface Plasmon Resonance Sensor Chip	18x18x1 mm	100	5

Please contact us for bulk order or customized shape, size, thickness and substrate.

References:

1. Size effects on the mechanical behavior of gold thin films. Journal of Materials Science 38, no. 20 (2003): 4125-4128.

2. Photo-induced voltage in nano-porous gold thin film. Optics express 23, no. 2 (2015): 823-832.

3. Effect of nanoporous gold thin film morphology on electrochemical DNA sensing. Analytical chemistry 87, no. 16 (2015): 8149-8156.

MSE Supplies offers custom metal coating services using e-beam vapor deposition, a high-vacuum process with excellent control of film thickness.

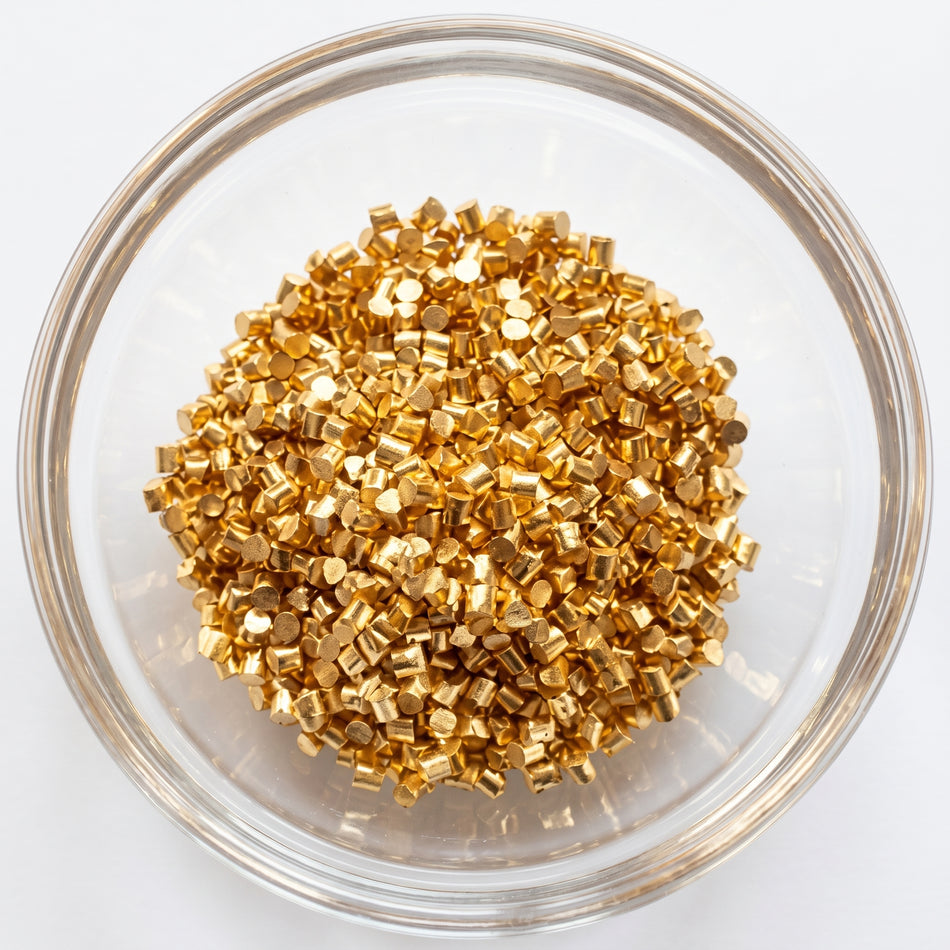

MSE Supplies offers a wide selection of high-quality evaporation materials and crucibles in a full range of purity and dimensions for thin film coatings. These materials are suitable for all commercial evaporation systems, whether your requirements are for thermal evaporation or electron beam deposition system.
