How to Fabricate Pouch Cells ? (Lab Line)

Pouch cell fabrication involves several steps:

Slurry preparation --> Slurry coating --> Calendaring --> Cut electrode --> Electrode stacking --> Weld current collectors and then tab together --> Produce a pouch case --> Top & side sealing --> Electrolyte filling --> Primary sealing (vacuum standing and vacuum seal) --> Battery formation (Charge/discharge) --> Degassing à Secondary sealing.

MSE PRO battery fabrication equipment includes a wide range of production machines from slurry making to final sealing system.

The flow chart below is the typical process for equipment that will be used for a R & D lab.

Pouch Cell Fabrication Process Flow

Slurry
Making

Vacuum Oven

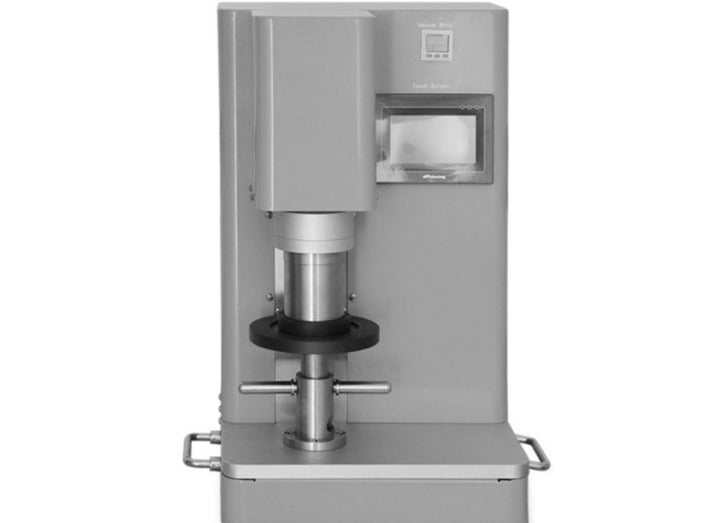

Vacuum Mixer

Coating

Film Coater

Electrode
Making

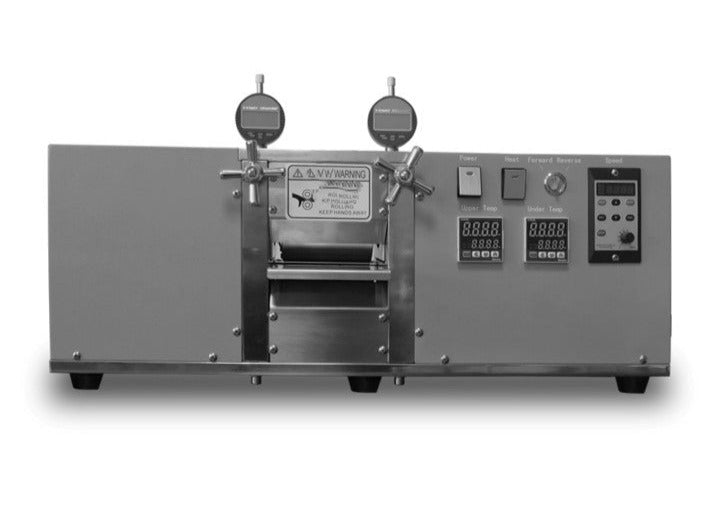

Calendaring

Electrode Die cutter

Assembly
System

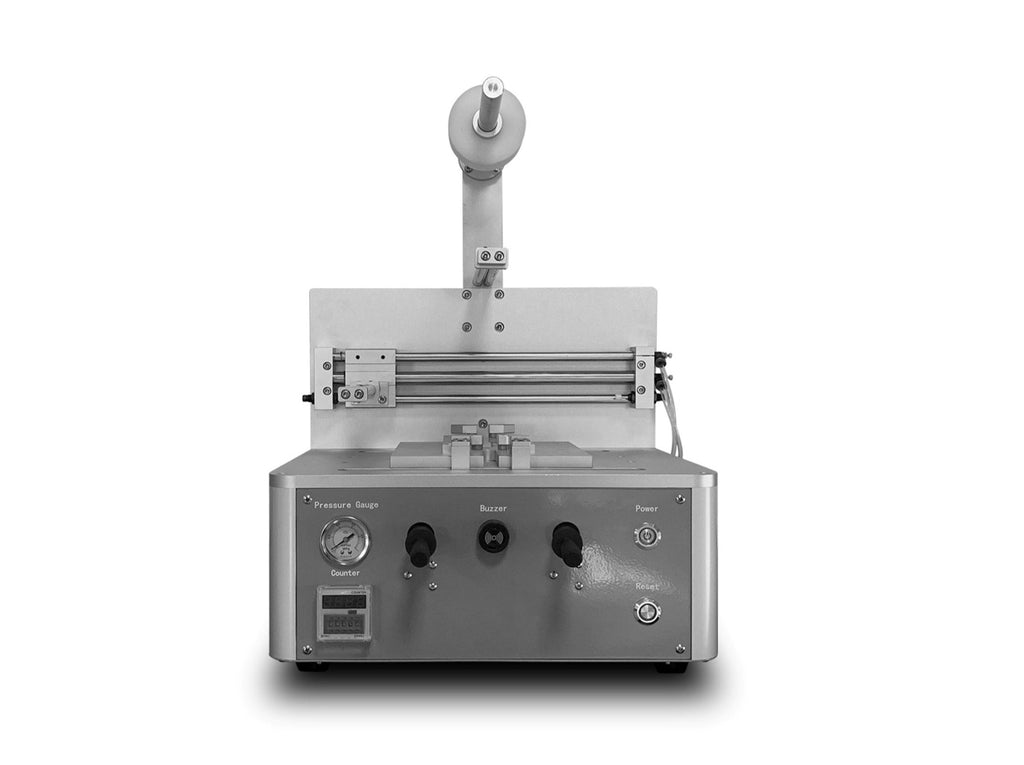

Stacking

Welding

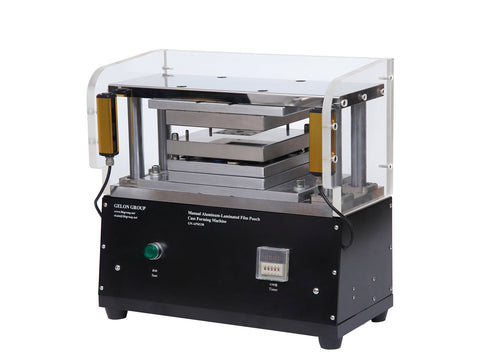

Case Forming

Sealing
System

Top & Side Sealing

Electrolyte Injection

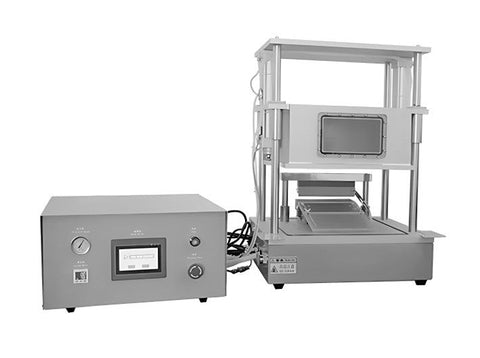

Primary Sealing

Formation
and
Degassing

Secondary Sealing

MSE Supplies offers various equipment and tools for pouch cell fabrication. MSE Supplies also offers customized products. If you need any customization such as different size of pouch cells, please contact us at sales@msesupplies.com.
