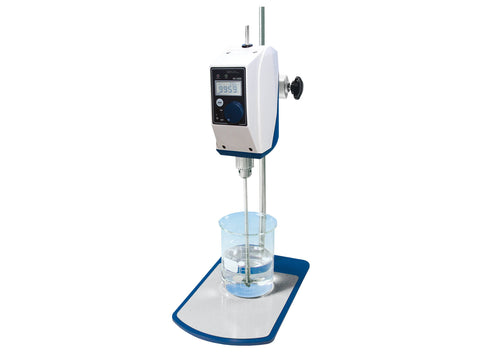

Witeg Overhead Stirrer HS-D, High-Speed, 200-3000 RPM, 5000/10000 mPas, Digital, Internal Controller
SKU: DH.WOS01015
Witeg Overhead Stirrer HS-D, High-Speed, 200-3000 RPM, 5000/10000 mPas, Digital, Internal Controller
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- All mixing applications in the laboratory
- Specialized for low- to medium-viscosity materials
Features
- Powerful DC motor for various stirring applications (direct-driven or worm-geared)
- the direct driven motor ensures high-speed at all recommended viscosities
- Digital feedback controller
- Steady and constant stirring speed

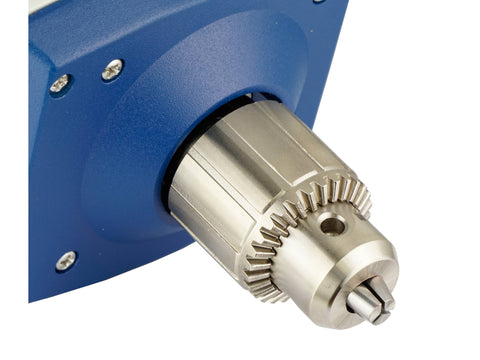

- Chrome-plated stainless steel chuck to prevent corrosion

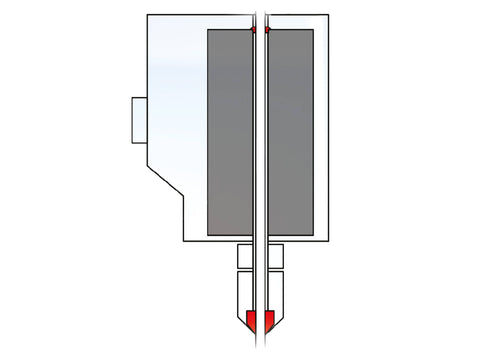

- Anti-trembling system - the impeller is fixed at two points within the body and chuck
- Adjustable impeller position (height)
- Motor overload and overheat protection for highest safety and long lifetime
- Available as set with impeller, plate stand and clamp
- Many different impellers and plate stands available
Features
- Maximal 10 / 20 liter
- 200 - 3,000 rpm
- Maximal viscosity 5,000 / 10,000 mPas
- Direct driven motor
- Digital LCD display
- 6 light sources
- Smooth start and change of stirring speed while operation
- Storage function for timer and speed
- Impeller height adjustable
- Chrome-plated stainless steel chuck
- CE certified and unique serial number for tracing
Safety mechanism
- Timer 99h 59min with timer-end signal
- Error status
- Locking mode
- Overload protection
- Overheat protection
- Operation LEDs
Controller
- Jog-Shuttle controller with touch-button
Technical data
| Version | High-speed |
| Length (outer) | 145 mm |
| Material | ABS & Aluminium |
| Controller | Digital, integrated |
| Moisture range | 80% RH |
| Weight | 4,5 kg |
| Capacity | max. 10 l |
| Temperature range | Ambient temperature +0°C - 40°C |
| Viscosity (mPas) | max. 5000 mPas |
| Width (Outer) | 90 mm |
| Height (outer) | 180 mm |
| Ideal for | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials |
| Torque | 70 Ncm at chuck |
| Speed | 200 - 3000 rpm |
| Weight with packaging | 5 kg |
| Stirrer diameter | Shafts Ø8 mm or less |
| Packing size | 320 x 300 x h180 mm |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Material | Ideal for | Controller | Torque | Moisture range | Speed | Weight | Weight with packaging | Capacity | Stirrer diameter | Temperature range | Packing size | Viscosity (mPas) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DH.WOS01015 | HS-30D unit 230 V | High-speed | 90 mm | 145 mm | 180 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials | Digital, integrated | 70 Ncm at chuck | 80% RH | 200 - 3000 rpm | 4,5 kg | 5 kg | max. 10 l | Shafts Ø8 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 5000 mPas |
| DH.WOS01016 | HS-30D set 230 V | High-speed | 90 mm | 145 mm | 180 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials | Digital, integrated | 70 Ncm at chuck | 80% RH | 200 - 3000 rpm | 4,5 kg | 5 kg | max. 10 l | Shafts Ø8 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 5000 mPas |
| DH.WOS01025 | HS-100D unit 230 V | High-speed | 90 mm | 145 mm | 180 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials | Digital, integrated | 80 Ncm at chuck | 80% RH | 200 - 3000 rpm | 5,3 kg | 8 kg | max. 20 l | Shafts Ø8 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 10000 mPas |
| DH.WOS01026 | HS-100D set 230 V | High-speed | 90 mm | 145 mm | 180 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials | Digital, integrated | 80 Ncm at chuck | 80% RH | 200 - 3000 rpm | 5,3 kg | 8 kg | max. 20 l | Shafts Ø8 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 10000 mPas |
