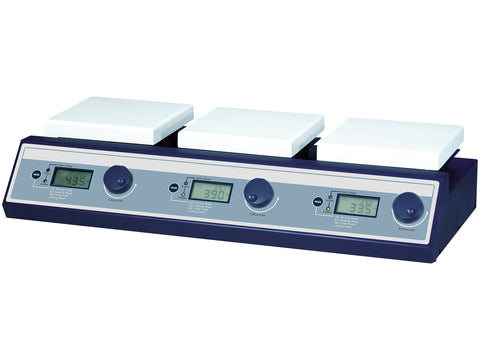

Witeg Magnetic Stirrer With Hotplate SMHS 3/6 places 350°C 1500rpm
SKU: DH.WMH03503
Witeg Magnetic Stirrer With Hotplate SMHS 3/6 places 350°C 1500rpm
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- Multiple mixing and heating applications at the same time
- Mixing of chemical, laboratory and pharmaceutical materials
- Heat-sensitive procedures in microbiology and biochemistry
- Sample drying and general lab heating applications
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Features
- Each place individually adjustable
- Digital Jog-Dial controller for each place
- Up to 350°C
- Up to 1.500 rpm
- Ceramic-coated aluminium plate with 3 or 6 places 140x140 mm
- Heat-, chemical- and restricted acid-resistant
- No liquid can get into the body
- Powder-coated steel body
- Easy to clean

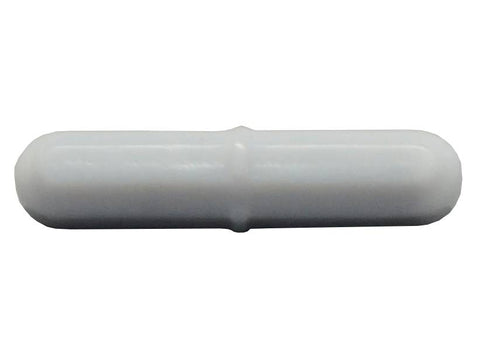

- 30 mm stirrer bar included (3x / 6x)
- Ip to 3 temperature probes possible (3 & 6 place-type)
- CE certified and unique serial number for tracing
Safety mechanism
- Timer 99h 59min with timer-end signal
- Error status
- Locking mode
- Operation LEDs
Controller
- Jog-Dial controller with touch-button
Technical data
| Version | 3 stirring points |
| Length (outer) | 510 mm |
| Connections | 3 temperature sensor ports, 3 stand rod sockets |
| Housing material | Powder-coated steel |
| Weight | 10 kg |
| Heating power | 3 x 400 W |
| Plate size | 140 x 140 mm (each place) |
| Temperature control resolution | Display 0.1°C, control 0.5°C |
| Temperature accuracy | ±0.3°C |
| Width (Outer) | 240 mm |
| Height (outer) | 100 mm |
| Controller | Digital |
| Speed | 80 - 1500 rpm |
| Weight with packaging | 10 kg |
| Capacity | 20 l |
| Plate material | Ceramic-coated aluminium |
| Temperature range with filter | 350°C |
| Packing size | 540 x 330 x h170 mm |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Connections | Controller | Housing material | Speed | Weight | Weight with packaging | Heating power | Capacity | Plate size | Plate material | Temperature control resolution | Temperature range with filter | Temperature accuracy | Packing size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DH.WMH03503 | SMHS-3 230 V | 3 stirring points | 240 mm | 510 mm | 100 mm | 3 temperature sensor ports, 3 stand rod sockets | Digital | Powder-coated steel | 80 - 1500 rpm | 10 kg | 10 kg | 3 x 400 W | 20 l | 140 x 140 mm (each place) | Ceramic-coated aluminium | Display 0.1°C, control 0.5°C | 350°C | ±0.3°C | 540 x 330 x h170 mm |
| DH.WMH03506 | SMHS-6 230 V | 6 (2x3) stirring points | 410 mm | 510 mm | 180 mm | 3 temperature sensor ports, 6 stand rod sockets | Digital | Powder-coated steel | 80 - 1500 rpm | 18 kg | 18 kg | 6 x 400 W | 20 l | 140 x 140 mm (each place) | Ceramic-coated aluminium | Display 0.1°C, control 0.5°C | 350°C | ±0.3°C | 570 x 540 x h230 mm |
