Witeg Incubators WIR B.O.D. 150/250/420/700 Liter 0-60°C

Witeg Incubators WIR B.O.D. 150/250/420/700 Liter 0-60°C

SKU: DH.WIR03150

  • $ 6,24395
  • Save $ 75000

Request a Quote

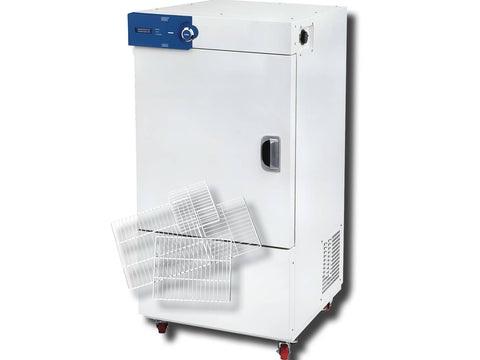

Witeg Incubators WIR B.O.D. 150/250/420/700 Liter 0-60°C

Buy Witeg products from MSE Supplies at the best value.

Description

Ideal for:

  • Animal and plant cell culture, constant temperature, germination test, BOD test, etc.

Features:

  • CFC free refrigerant (R-404A)
  • Intelligent refrigerator control prevents compressor overload
  • Superior temperature uniformity by forced-air convection
  • Stainless steel chamber, powder-coated body
  • Tempered glass door to observe samples during incubation
  • 3x PE-coated steel wire shelves included

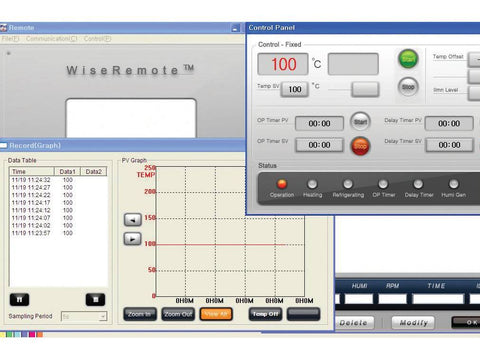

  • RS232C interface for monitoring and controlling (WireRemote)
  • Storage function for set values: timer and temperature
  • Backlight LCD display
  • CE & UL/CUL certified and unique serial number for tracing

Features

Jog-Dial controller:

  • ergonomic design for easy and convenient usage
  • 2-way Jog-Dial knob provides simple setting of required temperature and time
  • high quality illuminated LCD
  • „MAIN“ and „SUB“ button to access all menus

Temperature uniformity successfully tested by ASTM standards:All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.

Green product:All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

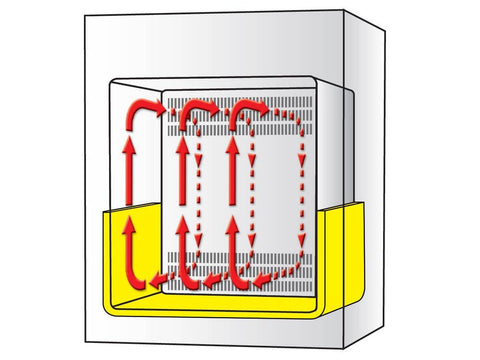

Forced-air: The incubators forced-air flow is established by a three sided heating element in combination with a very effective fan placed in an air-flow room for best temperature uniformity in the whole chamber.

Devices with 230 V power supply can also be supplied with 120 V on request.

Controller:

  • Jog-Dial controller (PID) with 2-way knob (turn and push), digital LCD with backlight, and two durable setting buttons



Technical data

Version Forced-air convection
Length (inner) 505 mm
Width (Outer) 640 mm
Height (outer) 1313 mm
Shelves 3 PE-coated steel wire shelves included, total load 48kg (16kg per shelf)
Weight with packaging 191 kg
Capacity 150 l
Refrigerant R-404A (CFC-free refrigerant)
Temperature variation ±0.5°C at 37°C, ±1.4°C at 50°C
Temperature accuracy ±0.2°C to 37°C
Recovery time 10 min. to 37°C, 12 min. to 50°C
Width (inner) 505 mm
Height (inner) 610 mm
Length (outer) 832 mm
Heating time 20 min. to 37°C, 20 min. to 50°C
Weight 118 kg
Heating power 700 W
Compressor 190 W
Power consumption 1600 W
Temperature range 0°C - +60°C
Packing size 900 x 1000 x 1650 mm
Controller Temperature sensor PT100



Comparison

SKU Model Version Width (inner) Length (inner) Height (inner) Width (Outer) Length (outer) Height (outer) Heating time Shelves Weight Weight with packaging Heating power
DH.WIR03150 WIR-150 230 V Forced-air convection 505 mm 505 mm 610 mm 640 mm 832 mm 1313 mm 20 min. to 37°C, 20 min. to 50°C 3 PE-coated steel wire shelves included, total load 48kg (16kg per shelf) 118 kg 191 kg 700 W
DH.WIR03250 WIR-250 230 V Forced-air convection 505 mm 505 mm 1000 mm 640 mm 832 mm 1703 mm 20 min. to 37°C, 20 min. to 50°C 3 PE-coated steel wire shelves included, total load 48kg (16kg per shelf) 157 kg 217 kg 1000 W
DH.WIR03420 WIR-420 230 V Forced-air convection 705 mm 605 mm 1000 mm 840 mm 932 mm 1753 mm 35 min. to 37°C, 35 min. to 50°C 3 PE-coated steel wire shelves included, total load 48kg (16kg per shelf) 202 kg 277 kg 1200 W
DH.WIR03700 WIR-700 230 V Forced-air convection 800 mm 700 mm 1250 mm 935 mm 1027 mm 2000 mm 35 min. to 37°C, 35 min. to 50°C 3 PE-coated steel wire shelves included, total load 48kg (16kg per shelf) 234 kg 313 kg 2000 W



SKU Capacity Compressor Refrigerant Power consumption Temperature variation Temperature range Temperature accuracy Packing size Recovery time Controller
DH.WIR03150 150 l 190 W R-404A (CFC-free refrigerant) 1600 W ±0.5°C at 37°C, ±1.4°C at 50°C 0°C - +60°C ±0.2°C to 37°C 900 x 1000 x 1650 mm 10 min. to 37°C, 12 min. to 50°C Temperature sensor PT100
DH.WIR03250 250 l 250 W R-404A (CFC-free refrigerant) 1800 W ±0.5°C at 37°C, ±1.4°C at 50°C 0°C - +60°C ±0.2°C to 37°C 900 x 1000 x 2040 mm 10 min. to 37°C, 12 min. to 50°C Temperature sensor PT100
DH.WIR03420 420 l 370 W R-404A (CFC-free refrigerant) 2300 W ±0.5°C at 37°C, ±1.4°C at 50°C 0°C - +60°C ±0.2°C to 37°C 1100 x 1100 x 2140 mm 12 min. to 37°C, 15 min. to 50°C Temperature sensor PT100
DH.WIR03700 700 l 370 W R-404A (CFC-free refrigerant) 2400 W ±0.5°C at 37°C, ±1.4°C at 50°C 0°C - +60°C ±0.2°C to 37°C 1220 x 1220 x 2260 mm 12 min. to 37°C, 15 min. to 50°C Temperature sensor PT100
