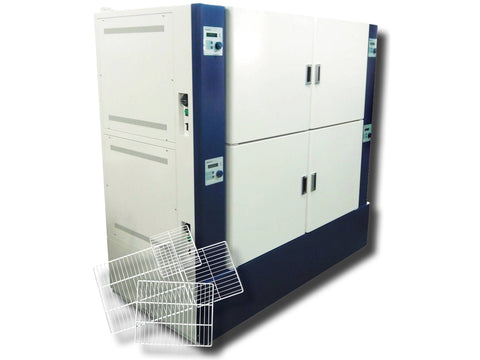

Witeg Incubators WIM Industrial 4 Chambers Each 125 Liter
SKU: DH.WIM04125
Witeg Incubators WIM Industrial 4 Chambers Each 125 Liter
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Microorganism culture, animal and plant cell culture, constant temperature, germination, etc.
Features:
- Forced-air flow by silent fan motor implements the highest uniformity of temperature in each chamber
- 4x125 liter chambers
- Each chamber has an independent fuzzy controller for different temperature and time control
- 8x PE-coated steel wire shelves included
- Corrosion resistant stainless steel chamber, powder-coated body
- Tempered glass door to observe samples during incubation
- Storage function for the set values of temperature and timer
- Backlight LCD display
- CE & UL/CUL certified and unique serial number for tracing
Features
Temperature uniformity successfully tested by ASTM standards:All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.
Green product:All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.
Forced-air: The incubators forced-air flow is established by a three sided heating element in combination with a very effective fan placed in an air-flow room for best temperature uniformity in the whole chamber.
Devices with 230 V power supply can also be supplied with 120 V on request.
Safety mechanism:
- Locking mode
- Overheat and over-current protection
- Sensor error detection
Controller:
- Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Technical data
| Version | 4 individual chambers, forced-air convection |
| Length (outer) | 845 mm |
| Heating time | 15 min. to 37°C, 30 min. to 50°C |
| Weight | 343 kg |
| Heating power | 4 x 500 W |
| Effective space | 500 x 500 x 500 mm (each room) |
| Temperature variation | ±0.3°C at 37°C, ±0.7°C at 50°C |
| Temperature accuracy | ±0.2°C to 37°C |
| Controller | Temperature sensor PT100 |
| Width (Outer) | 1655 mm |
| Height (outer) | 1710 mm |
| Shelves | 8 PE-coated steel wire shelves included |
| Weight with packaging | 441 kg |
| Capacity | 4 chambers x 125 l |
| Power consumption | 2600 W |
| Temperature range | Room temperature +5°C - 70°C |
| Recovery time | 8 min. to 37°C, 10 min. to 50°C |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Heating time | Illumination | Shelves | Weight | Weight with packaging | Heating power |
| DH.WIM04125 | WIM-4 230 V | 4 individual chambers, forced-air convection | 1655 mm | 845 mm | 1710 mm | 15 min. to 37°C, 30 min. to 50°C | 8 PE-coated steel wire shelves included | 343 kg | 441 kg | 4 x 500 W | |
| DH.WIM16125 | WIM-R4 3 Phase | 4 individual chambers, forced-air convection | 1655 mm | 845 mm | 1710 mm | 20 min. to 37°C, 30 min. to 50°C | 8 PE-coated steel wire shelves included | 350 kg | 450 kg | 4 x 650 W | |
| DH.WIM26125 | WIM-RL4 3 Phase | 4 individual chambers, forced-air convection | 1655 mm | 845 mm | 1710 mm | 20 min. to 37°C, 30 min. to 50°C | 2 x FRL 55 W (x 4 chambers) | 8 PE-coated steel wire shelves included | 350 kg | 450 kg | 4 x 650 W |
| SKU | Capacity | Compressor | Effective space | Power consumption | Temperature variation | Temperature range | Temperature accuracy | Recovery time | Controller |
| DH.WIM04125 | 4 chambers x 125 l | 500 x 500 x 500 mm (each room) | 2600 W | ±0.3°C at 37°C, ±0.7°C at 50°C | Room temperature +5°C - 70°C | ±0.2°C to 37°C | 8 min. to 37°C, 10 min. to 50°C | Temperature sensor PT100 | |
| DH.WIM16125 | 4 chambers x 125 l | 1/4 HP (4 x chambers) | 500 x 500 x 500 mm (each room) | 4500 W | ±0.5°C at 37°C | 0°C - 60°C (refrigerated) | ±0.2°C to 37°C | 10 min. to 37°C, 12 min. to 50°C | Temperature sensor PT100 |
| DH.WIM26125 | 4 chambers x 125 l | 1/4 HP (4 x chambers) | 500 x 500 x 500 mm (each room) | 4800 W | ±0.5°C at 37°C | 0°C - 60°C (refrigerated) | ±0.2°C to 37°C | 10 min. to 37°C, 12 min. to 50°C | Temperature sensor PT100 |
