Witeg Heating Mantles WHM for Beaker

Witeg Heating Mantles WHM for Beaker

SKU: DH.WHM12141

  • $ 65195
  • Save $ 7900

Request a Quote

Witeg Heating Mantles WHM for Beaker

Buy Witeg products from MSE Supplies at the best value.

Description

Ideal for

  • For beaker 100 - 10.000 ml

Features

10,000 ml and 20,000 ml heating mantles without integrated controller can only be operated with a digital controller.

Devices with 230 V power supply can also be supplied with 120 V on request.

Features

  • 100°C - 450°C
  • Nickel chrome heating element
  • Coil type: acid-resistant, long life time
  • All kinds of beaker can be used (DURAN ®/Kimax/Pyrex/Iwaki)
  • CE certified and unique serial number for tracing

Versions

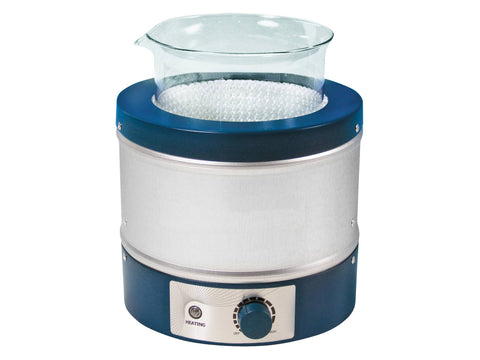

  • Built-in temperature controller

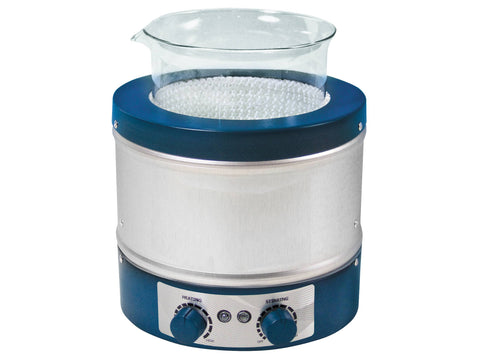

  • Built-in stirring & temperature controller

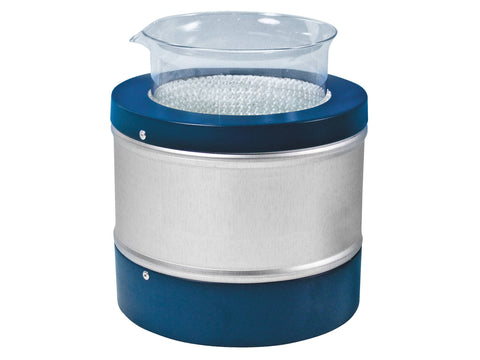

  • Without controller (separate controller needed)

Technical data

Version with built-in temperature controller
Height (outer) 150 mm
Controller integrated
Vessel capacity 100 ml
Power consumption 80 W
Height (inner) 40 mm
Diameter (outer) Ø150 mm
Vessel diameter Ø50 - 52 mm
Speed 50 - 750 rpm
Temperature range 100°C - 450°C



Comparison

SKU  Model Version Height (inner) Height (outer) Diameter (outer) Controller Vessel diameter Vessel capacity Speed Power consumption Temperature range
DH.WHM12141 WHM with built-in temperature controller 40 mm 150 mm Ø150 mm integrated Ø50 - 52 mm 100 ml 50 - 750 rpm 80 W 100°C - 450°C
DH.WHM12142 WHM with built-in temperature controller 65 mm 150 mm Ø150 mm integrated Ø68 - 70 mm 250 ml 50 - 750 rpm 140 W 100°C - 450°C
DH.WHM12143 WHM with built-in temperature controller 70 mm 150 mm Ø150 mm integrated Ø79 - 81 mm 400 ml 50 - 750 rpm 240 W 100°C - 450°C
DH.WHM121431 WHM with built-in temperature controller 75 mm 150 mm Ø150 mm integrated Ø76 - 78 mm 400 ml 50 - 750 rpm 240 W 100°C - 450°C
DH.WHM12144 WHM with built-in temperature controller 75 mm 150 mm Ø150 mm integrated Ø88 - 90 mm 600 ml 50 - 750 rpm 240 W 100°C - 450°C
DH.WHM12145 WHM with built-in temperature controller 90 mm 175 mm Ø200 mm integrated Ø98 - 100 mm 800 ml 50 - 750 rpm 300 W 100°C - 450°C
DH.WHM12146 WHM with built-in temperature controller 90 mm 175 mm Ø200 mm integrated Ø105 - 108 mm 1000 ml 50 - 750 rpm 350 W 100°C - 450°C
DH.WHM12147 WHM with built-in temperature controller 125 mm 195 mm Ø200 mm integrated Ø130 - 132 mm 2000 ml 50 - 750 rpm 450 W 100°C - 450°C
DH.WHM12148 WHM with built-in temperature controller 160 mm 235 mm Ø270 mm integrated Ø151 - 153 mm 3000 ml 50 - 750 rpm 550 W 100°C - 450°C
DH.WHM121481 WHM with built-in temperature controller 160 mm 235 mm Ø270 mm integrated Ø160 - 162 mm 4000 ml 50 - 750 rpm 700 W 100°C - 450°C
DH.WHM12149 WHM with built-in temperature controller 160 mm 235 mm Ø270 mm integrated Ø169 - 171 mm 5000 ml 50 - 750 rpm 800 W 100°C - 450°C
DH.WHM121601 WHM with built-in stirring & temperature controller 45 mm 150 mm Ø150 mm integrated Ø50 - 52 mm 100 ml 50 - 750 rpm 80 W 100°C - 450°C
DH.WHM121602 WHM with built-in stirring & temperature controller 70 mm 150 mm Ø150 mm integrated Ø68 - 70 mm 250 ml 50 - 750 rpm 140 W 100°C - 450°C
DH.WHM121603 WHM with built-in stirring & temperature controller 70 mm 180 mm Ø150 mm integrated Ø79 - 81 mm 400 ml 50 - 750 rpm 240 W 100°C - 450°C
DH.WHM121604 WHM with built-in stirring & temperature controller 70 mm 180 mm Ø150 mm integrated Ø76 - 78 mm 400 ml 50 - 750 rpm 240 W 100°C - 450°C
DH.WHM121605 WHM with built-in stirring & temperature controller 72 mm 180 mm Ø150 mm integrated Ø88 - 90 mm 600 ml 50 - 750 rpm 240 W 100°C - 450°C
DH.WHM121606 WHM with built-in stirring & temperature controller 105 mm 195 mm Ø200 mm integrated Ø105 - 108 mm 1000 ml 50 - 750 rpm 350 W 100°C - 450°C
DH.WHM121607 WHM with built-in stirring & temperature controller 140 mm 195 mm Ø200 mm integrated Ø130 - 132 mm 2000 ml 50 - 750 rpm 450 W 100°C - 450°C
DH.WHM121608 WHM with built-in stirring & temperature controller 140 mm 235 mm Ø270 mm integrated Ø151 - 153 mm 3000 ml 50 - 750 rpm 550 W 100°C - 450°C
DH.WHM121609 WHM with built-in stirring & temperature controller 170 mm 270 mm Ø325 mm integrated Ø160 - 162 mm 4000 ml 50 - 750 rpm 700 W 100°C - 450°C
DH.WHM121610 WHM with built-in stirring & temperature controller 170 mm 270 mm Ø325 mm integrated Ø169 - 171 mm 5000 ml 50 - 750 rpm 800 W 100°C - 450°C
DH.WHM12170 WHM separate controller needed 50 mm 80 mm Ø150 mm WHM-C10A or WHM-C10D Ø50 - 52 mm 100 ml 50 - 750 rpm 80 W 100°C - 450°C
DH.WHM12171 WHM separate controller needed 50 mm 115 mm Ø150 mm WHM-C10A or WHM-C10D Ø68 - 70 mm 250 ml 50 - 750 rpm 140 W 100°C - 450°C
DH.WHM12172 WHM separate controller needed 85 mm 115 mm Ø150 mm WHM-C10A or WHM-C10D Ø79 - 81 mm 400 ml 50 - 750 rpm 240 W 100°C - 450°C
DH.WHM12173 WHM separate controller needed 85 mm 115 mm Ø150 mm WHM-C10A or WHM-C10D Ø88 - 90 mm 600 ml 50 - 750 rpm 240 W 100°C - 450°C
DH.WHM12175 WHM separate controller needed 115 mm 140 mm Ø200 mm WHM-C10A or WHM-C10D Ø105 - 108 mm 1000 ml 50 - 750 rpm 350 W 100°C - 450°C
DH.WHM12176 WHM separate controller needed 140 mm 155 mm Ø200 mm WHM-C10A or WHM-C10D Ø130 - 132 mm 2000 ml 50 - 750 rpm 450 W 100°C - 450°C
DH.WHM12177 WHM separate controller needed 175 mm 200 mm Ø270 mm WHM-C10A or WHM-C10D Ø151 - 153 mm 3000 ml 50 - 750 rpm 550 W 100°C - 450°C
DH.WHM12178 WHM separate controller needed 175 mm 200 mm Ø270 mm WHM-C10A or WHM-C10D Ø160 - 162 mm 4000 ml 50 - 750 rpm 700 W 100°C - 450°C
DH.WHM12179 WHM separate controller needed 175 mm 200 mm Ø270 mm WHM-C10A or WHM-C10D Ø169 - 171 mm 5000 ml 50 - 750 rpm 800 W 100°C - 450°C
DH.WHM121791 WHM separate controller needed; Mantle steel case - magnetic stirring is not available! 245 mm 270 mm Ø325 mm WHM-C10A or WHM-C10D Ø216 - 219 mm 10000 ml 50 - 750 rpm 1400 W 100°C - 450°C
