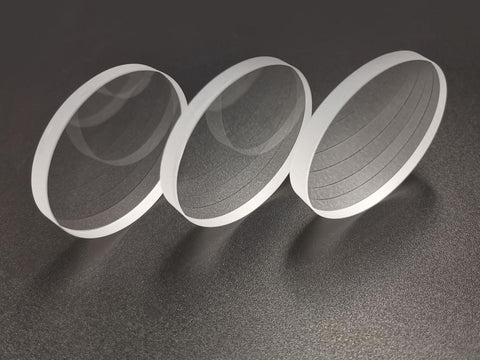

MSE PRO Wedge Windows
SKU: CS0059
To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.
MSE supplies offers customized Wedge Windows with different materials, dimension, surface qualify, etc.
Wedge windows have two surfaces that slightly off parallelism, which will prevent interference in the front and back of a plain window. It is widely used in laser application to enhance beam stability.
MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
Technical Data:
| Parameters | Value |
| Material |
|
| Size (mm) |
2-300 |
| Size Tolerance (mm) | 0-0.01~0-0.1 |
| Thickness Tolerance (mm) | ±0.01~±0.1 |
| Irregularity (P-V) @ 632.8nm | λ/10~λ/2 |
| Surface Quality | 20/10~60/40 |
| Angular Accuracy | <30”~3' |
| Clear Aperture (%) | >90 |
| Bevel | Protective bevel as needed |
| Coating | Uncoated, AR, BBAR |
