Wedge Prisms

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

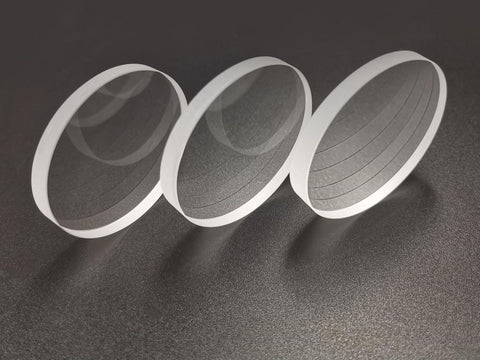

MSE supplies offers customized Wedge Prisms with different materials, dimension, surface qualify, etc.

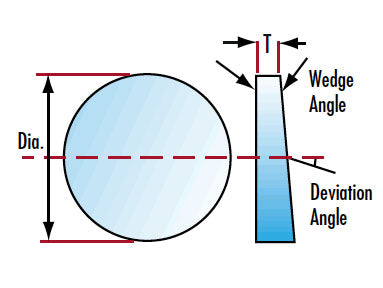

The wedge prism is a prism with a shallow angle between its input and output surfaces. It is a basic optical elements in various optical systems to deflect the incident. The amount of the image offset depends on the angle between the input and output surface and the distance of the image plane to the wedge prism.

MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.

Technical Data:

Parameters Value
Material
  • Optical Glass
  • Fused Silica
  • Silicon
  • Germanium
  • ZnSe
  • ZnS
  • Sapphire
  • CaF2
  • MgF2
  • BaF2
Size (mm) 2-300
Size Tolerance (mm) +0/-0.01~+0/-0.1
Thickness Tolerance (mm) ±0.01~±0.1
Irregularity (P-V) @ 632.8nm λ/10~λ/2
Surface Quality 20/10~60/40
Centration <30”~3'
Clear Aperture (%) >90
Bevel Protective bevel as needed
Coating Uncoated, AR, BBAR, Mirror
