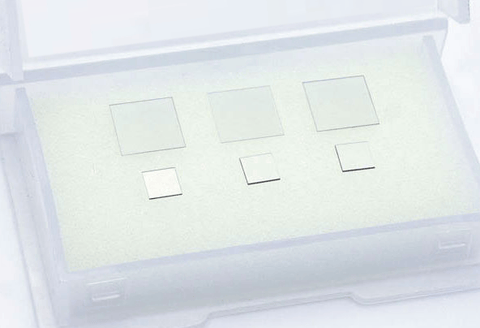

MSE PRO Single Crystal CVD Diamond Plate (Thickness: 0.3mm, Ra < 20nm)

  • $ 23950

MSE PRO Single Crystal CVD Diamond Plate (Thickness: 0.3mm, Ra < 20nm)

Single Crystal CVD Diamond Plate has several advantages over various materials which are commonly used in the semiconductor industry. It has exceptional electron mobility and thermal conductivity, high resistance to thermal shock, and an even wider bandgap than GaN and SiC. These advantages make it an essential material in various industries, including electronics, semiconductors, precision tooling, medical and quantum optics. For example, researchers at CNRS use diamond wafers for power electronics applications. They achieve outstanding performance with high switching frequency and low total loss in both room and high temperatures compared to commercialized SiC devices.


Grade Optical Grade
Face Orientation {100}
Edge Orientation <100>
Thickness 0.3 mm
Thickness Tolerance
± 0.05 mm
Surface Finish

Single Side Polished;

Polished side:  Ra < 20 nm

Unpolished side: Ra < 1 μm

Please contact us for customization or bulk order.


1. Diamond semiconductor performances in power electronics applications. Diamond and Related Materials 110 (2020): 108154.

2. Chemical vapour deposition diamond single crystals with nitrogen-vacancy centres: a review of material synthesis and technology for quantum sensing applications. Journal of Physics D: Applied Physics 53, no. 31 (2020): 313001.

3. Single crystal and polycrystalline CVD diamond for demanding optical applications. Window and Dome Technologies and Materials XII 8016 (2011): 195-205.
