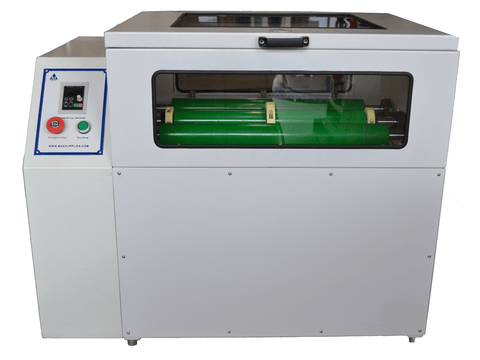

MSE PRO Large Capacity Roller Jar Mill with Safety Guard and Door Interlock System One Tier, 4-Jar up to 60L capacity
Description of MSE PRO Large Capacity Roller Jar Mill with Safety Guard and Door Interlock System - One Tier, 4-Jar up to 60L Capacity
This is a high quality ball milling system that meets OSHA safety requirements by integrating the safety guard and door interlock mechanism. It is ideal for milling various powders to as small as sub-micron size.
- Brand: MSE PROTM
- Manufacturer: MSE Supplies LLC
- SKU #: MA0132

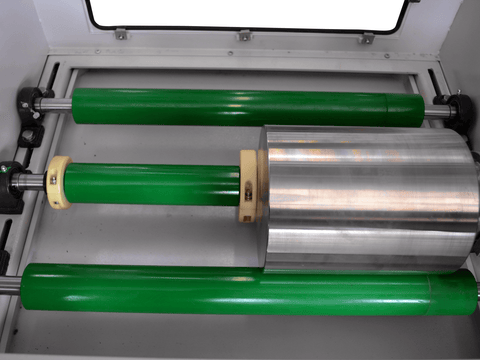

- Grinding Tools : Horizontal Grinding Jar
- Number of Grinding Jars: 4 (0.5L - 15.0L)
- Grinding Jar Volumes: 0.5L to 15L each (total maximum capacity 60L)
- Max. Loading Capacity: 320 kg (80 kg/jar)
- Rotational Speed of Grinding Jar: up to 410 RPM, continuously adjustable and programmable

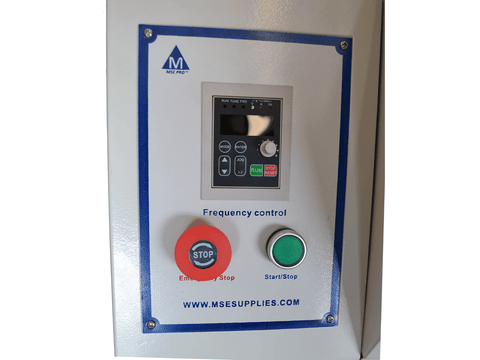

- Control: Programmable frequency controller, speed, time, and time interval control.
- Suggested Max. Running Time between Intervals: < 72 hours

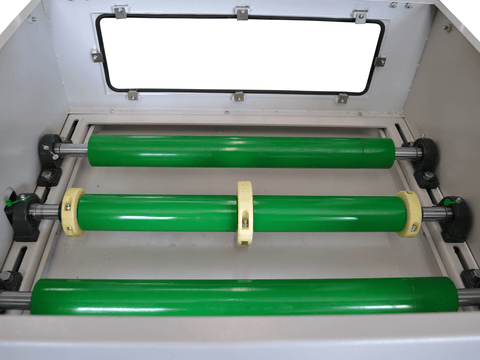

- No. of Rollers : 3
- Space Between Rollers: adjustable, max. 300 mm
- Roller Dimension: 30 mm Diameter
- Roller Length : 640 mm
- Power Supply: single phase 110 V or 220 V AC, 1.5 KW, 50/60 Hz
- Overall Dimension : W1130 x D800 x H890 mm
- Net Weight : 190 kg
- Gross weight: 226 kg
- Warranty: 1 year warranty after delivery.
Customized designs are available upon request. Please contact us to discuss your particular requirements.
