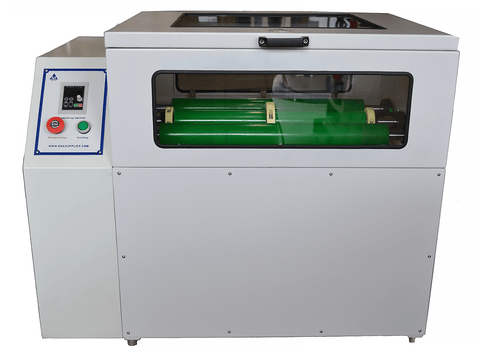

Roller Jar Mill with Safety Guard and Door Interlock System One Tier, 4-Jar up to 20L capacity

  • $ 4,99500


Description Roller Jar Mill with Safety Guard and Door Interlock System - One Tier, 4-Jar

This is a high quality ball milling system that meets OSHA safety requirements by integrating the safety guard and door interlock mechanism. It is ideal for milling various powders to as small as sub-micron size.

  • Brand: MSE PROTM
  • Manufacturer: MSE Supplies LLC
  • SKU #: MA0110
  • Model: JM-4-1-SG
  • Grinding Tools : Horizontal Grinding Jar
  • Number of Grinding Jars: 4 (0.5L - 5.0L)
  • Grinding Jar Volumes: 0.5L to 5L each (total maximum capacity 20L)
  • Max. Loading Capacity: 140 kg (35 kg/jar)
  • Rotational Speed of Grinding Jar: up to 410 RPM, continuously adjustable and programmable

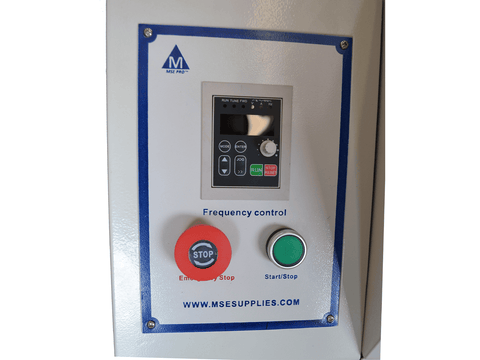

  • Control: Programmable frequency controller, speed, time, and time interval control.
  • Suggested Max. Running Time between Intervals: < 72 hours

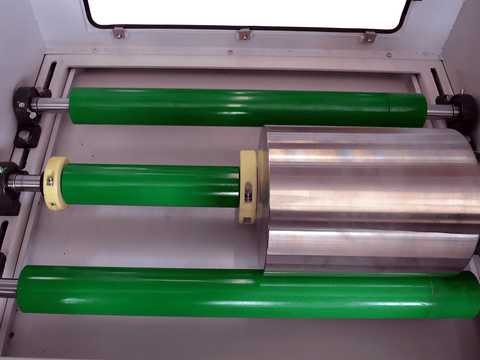

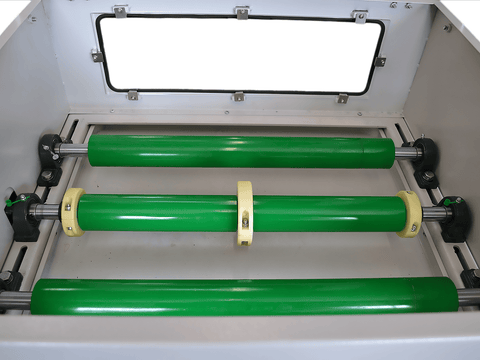

  • No. of Rollers : 3
  • Space Between Rollers: adjustable, max. 300 mm
  • Roller Dimension: 30 mm Diameter
  • Roller Length : 609 mm
  • Power Supply: single phase 110 V or 220 V AC, 1.5 KW, 50/60 Hz
  • Overall Dimension : W900 x D670 x H730 mm
  • Net Weight : 100 kg
  • Gross weight: 140 kg
  • Warranty: 1 year warranty after delivery.

Customized designs are available upon request. Please contact us to discuss your particular requirements.
