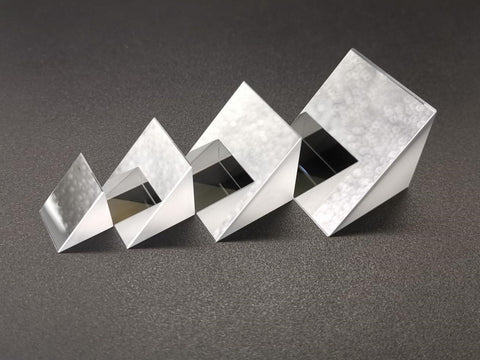

Right Angle Prisms Mirrors

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

MSE supplies offers customized Right Angle Prisms Mirrors with different materials, dimension, surface qualify, etc.

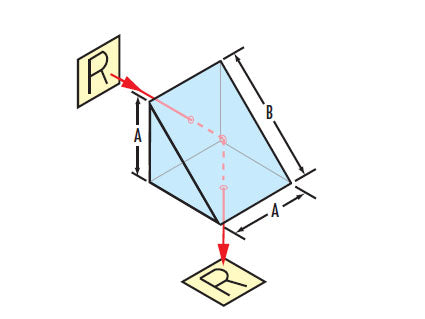

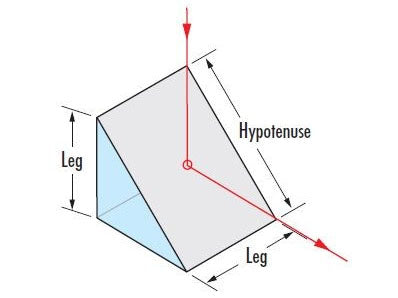

Right Angle Prisms Mirrors are used to deflect the incident light by 90 degree. They have the advantage of easy mounting and alignment over flat mirrors and thus are widely used in rigid optical systems.

MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.

Technical Data:

Parameters Value
Material
  • Optical Glass
  • Fused Silica
Size (mm) 2-300
Size Tolerance (mm) +0/-0.01~+0/-0.1
Thickness Tolerance (mm) ±0.01~±0.1
Irregularity (P-V) @ 632.8nm λ/10~λ/2
Surface Quality 20/10~60/40
Angular Accuracy <5”~3'
Clear Aperture (%) >90
Bevel Protective bevel as needed
Coating Uncoated, AR, Aluminum, Silver, Gold, Dielectric coating
