Protected Aluminum Mirrors

  • $ 1950


Protected Aluminum Mirrors

MSE supplies offers Aluminum Mirrors whose coating is protected by a thin glass layer to prevent tarnishing and scratching. Due to its low cost and high reflection rate, aluminum mirror is a popular choice in the visible spectrum. Reflection over 90% can be achieved. It is widely used in different optical systems like detector, sensor, etc. Standard product's dimension can be as large as 50mm in diameter or edge length. We also offer mirrors with different materials, coatings and size, please contact us for customization.

Technical Data:

Below are the parameters for standard products. For customized products with different material, size, surface quality and coating, please contact us.

Parameters Value
Material N-BK7/H-K9L
Dimension (mm)
  • Φ10*2
  • Φ12.7*2
  • Φ20*2
  • Φ25.4*3
  • Φ30*3
  • Φ50*3
  • 10*10*2
  • 20*20*2
  • 30*30*3
  • 50*50*3
Dimension Tolerance (mm) 0-0.1
Flatness
L/2
Parallelism (arcminute) 3
Coating Al

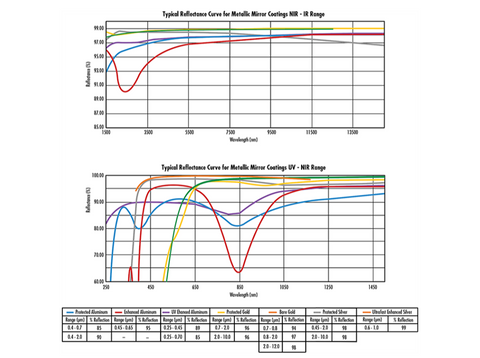

Reflectivity >90%
Surface Quality 60/40 Scratch/Dig
