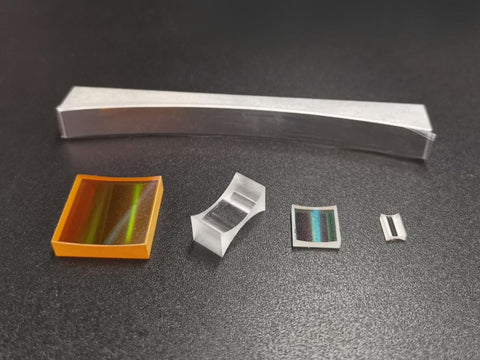

Plano Concave Cylindrical Lenses
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.
MSE supplies offers customized Plano Concave Cylindrical Lenses with different materials, dimension, surface qualify, etc.
Plano Concave Cylindrical Lenses, as indicated by the name, is a special cylindrical lenses with one flat surface and one concave surface. Unlike spherical lenses, which converge light into a spot or expand a spot in two dimensions, Plano Concave Cylindrical Lenses can only expand light in one dimension. It is widely used in laser application to expand incident beams.
MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
|Size Tolerance (mm)||+0/-0.01~+0/-0.1|
|Thickness Tolerance (mm)||±0.01~±0.1|
|Focal Length Tolerance (%)||±1|
|Irregularity (P-V) @ 632.8nm||λ/10~λ/2|
|Clear Aperture (%)||>90|
|Bevel||Protective bevel as needed|
|Coating||Uncoated, AR, BBAR|
