MSE PRO Pack of 10 Gel Films (100x100x0.165mm) for Optical and High Temperature Applications

SKU: CA0333

  • $ 17895
  • Save $ 2147

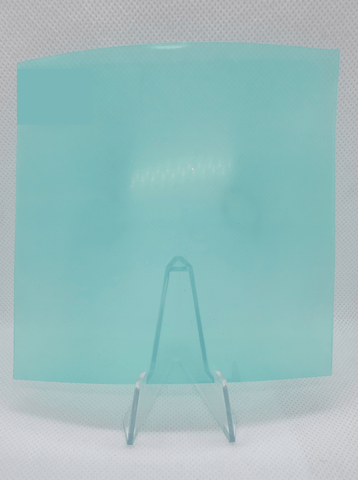

Pack of 10 Gel Films (100x100x0.165mm) for Optical and High Temperature Applications

Gel films are widely used for unique process applications, such as handling fixtures requiring optically clear film, finger print recognition and high temperature processes (up to 220°C).

Features:

  • High transparency
  • Low temperature flexibility
  • Good air permeability
  • Good thermal and chemical stability
  • No silica filler
  • Non-toxic, tasteless and physiological inertia.
  • High tear resistance, high elongation and permanent elasticity.

Please contact us for customization or bulk orders.

Material Highly cross-linked proprietary polymer
Retention Level

Product# CA0333: Ultra Low (XL)

Product# CA0334: Low (L)

Product# CA0335: Medium (M)

Product# CA0336: High (H)

Packing 10 pieces per pack
Dimensions 100x100 mm (±1mm)
Thickness 165±3 μm
Hardness (Shore A) 50
Tensile Strength 5 MPa
Tear Strength 6 KN/m
Elongation at Break 400%
Refractive Index 1.41
Transmittance >95% (After removal of the protective layer)
Applicable Temperature Range -40—200℃
Cytotoxicity Innocuity
Dielectric Strength 12 kV/mm
Dielectric Constant 2.7 MHz
Volume Resistivity

1014 Ω.cm

Shelf Life 2 years at ambient environment
