Neware CT-8008-5V100A-NFA-U Battery Simulation Tester - MSE Supplies LLC

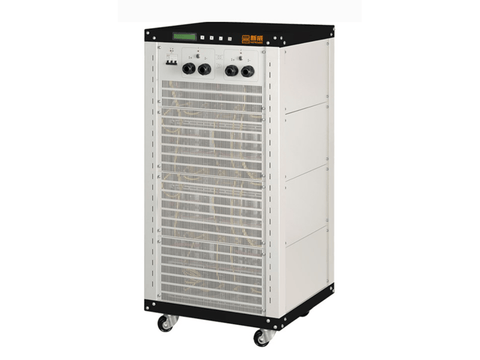

Neware CT-8008-5V100A-NFA-U Battery Simulation Tester

  • $ 19,97500


Product Details:

BTS-8000 series is an upgraded version of BTS-4000 series which is focusing on the test of EV battery, electrical tool battery, super capacitor and car starting battery. It has unique driving cycle simulation function and supports a variety of standard schedules, such as DDS, EPA, IM240, UDDS, FTP, HWFET, NYCC, etc. It uses dynamic power or current waveform to simulate electric vehicle driving on different road conditions. It is mainly used in power battery condition simulation, pulse charging and discharging, cycle Life, rate of charge and discharge.

Product Features:

  • Response time: ≤20ms
  • Accuracy: 0.05% FS
  • Minimum pulse width: 100ms
  • Data acquisition frequency: 100Hz

The maximum current and voltage can be customized upon request. Please contact MSE Supplies for customization.

About Neware

Since 1998, Neware has been committed to providing world-class testing solutions for the batteries and capacitors. Neware has provided flexible, high accuracy battery testing equipment to more than 32,000 customers worldwide ranging from battery manufacturers to R&D institutes, such as Argonne National Lab, LG Chem, Johnson Matthey, 3M, MIT, Stanford University and Princeton University. Customers are satisficed with stable, cost-effective battery testing equipment, along with the great service of Neware. ISO9001:2015 certified.

MSE Supplies is an authorized distributor of Neware in the USA. The product image is for reference only. The actual product appearance is based on  product configuration.

MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.

Specifications:

SKU BR0227
Neware Model CT-8008-5V100A-NFA-U
Power AC 380V/208V ±10%/50Hz/60Hz
Power Consumption 7089W
Voltage Range 0.025-5V
Voltage Accuracy ± 0.05% FS
Current Range 0.5-100A
Current Accuracy ± 0.05% FS
Current Response Time ≤20ms
Maximum Cycle Number 65535
Dimensions 600x600x1260mm
Weight 210kg
Warranty Limited 1 year warranty. Lifetime technical support.
Specification link Neware CT-8008-5V100A-NFA-U
