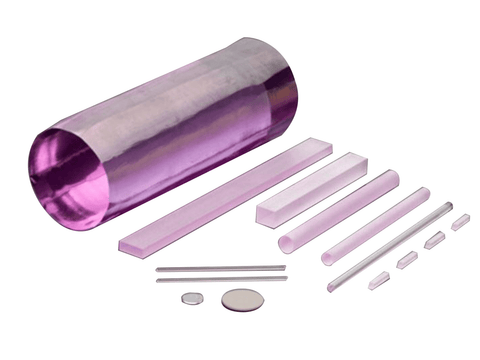

Nd:YAG, Nd doped Yttrium aluminium garnet Laser Crystal

To better serve you, we would like to communicate with you about technical details. Please Contact Us for a quote.





Main Specifications

dimensional tolerance:

Dia:< +/-0.025 mm ,length: < +/-0.5 mm

flatness:

λ/8 @633nm

Surface fineness:

10/5

flatness:

20 arc sec.

verticality:

5 arc min

orientation:

<111> crystalline direction,< +/-0.5°

coating film:

AR coating, HR Coating

reflect:

R<0.2%@1064, HR:R>99.8%@1064,R<5%@808nm,

clear aperture:

>95% central area

wavefront distortion:

<7mm diameter : <λ/8 per inch @ 633nm,

7mm diameter : <λ/10per inch @ 633nm



Publications related to YAG laser crystals:

[1] J. E. Geusic et al., “Laser oscillations in Nd-doped yttrium aluminum, yttrium gallium and gadolinium garnets”, Appl. Phys. Lett. 4 (10), 182 (1964)
[2] D. Y. Shen et al., “Highly efficient in-band pumped Er:YAG laser with 60 W of output at 1645 nm”, Opt. Lett. 31 (6), 754 (2006)
[3] J. W. Kim et al., “Fiber-laser-pumped Er:YAG lasers”, IEEE Sel. Top. Quantum Electron. 15 (2), 361 (2009)
[4] Li Chaoyang et al., “106.5 W high beam quality diode-side-pumped Nd:YAG laser at 1123 nm”, Opt. Express 18 (8), 7923 (2010)
[5] X. Délen et al., “34 W continuous wave Nd:YAG single crystal fiber laser emitting at 946 nm”, Appl. Phys. B 104 (1), 1 (2011)
[6] H. C. Lee et al., “Diode-pumped continuous-wave eye-safe Nd:YAG laser at 1415 nm”, Opt. Lett. 37 (7), 1160 (2012)
