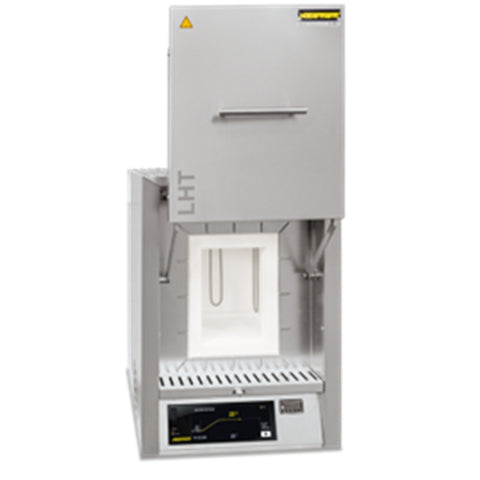

Nabertherm High Temperature Muffle Furnace LHT 04/18
SKU: LHT428VN-480
Nabertherm High Temperature Muffle Furnace LHT 04/18
MSE Supplies offers High-Temperature Bottom Loading Furnace LHT 04/18 Speed with maximum operation temperature of 1800°C and capacity of 4L. Designed as tabletop models, these compact high-temperature furnaces have a variety of advantages. The first-class workmanship using high-quality materials, combined with ease of operation, make these furnaces all-rounders in research and the laboratory. These high-temperature furnaces are also perfectly suited for the sintering of technical ceramics, such as zirconium oxide dental bridges.
Buy Nabertherm laboratory furnaces from MSE Supplies with the best price. Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Germany. Nabertherm offers a wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces.
Country of Origin: Made in Germany
Manufacturer: Nabertherm GmbH
Main Features:
- Tmax 1600 °C, 1750 °C, or 1800 °C
- Recommended working temperature 1750 °C (for models LHT ../18), increased
wear and tear must be expected in case of working at higher temperatures - High-quality heating elements made of molybdenum disilicide offer very good
protection against chemical interaction between charge and heating elements - Adjustable air inlet opening
- Exhaust air opening in the roof
- Thermocouple type B or type S (LHT ../17 D)
- Controller with touch operation P580 (50 programs with each 40 segments), you can control multiple furnaces remotely with app on your smartphone!
Options:
- Over-temperature limiter with adjustable cutout temperature as temperature
limiter to protect the furnace and load - Port for thermocouple in the furnace roof
- Protective gas connection to purge with non-flammable process, not gas tight
- Manual or automatic gas supply system
- Stackable saggars for loading in up to two or three levels, depending on model
Technical Data
| Model | LHT 04/18 |
| Heating Element | MoSi2 |
| Tmax (°C) | 1800°C |
| Inner Dimensions (mm) | 160 X 175 X 160 (W X D X H) |
| Charging area (mm) | 135x135 |
| Outer Dimensions (mm) | 450 X 475 X 610+335 (may vary with different accessories) |
| Capacity (L) | 4 |
| Power Supply (kW) | 2.7 |
| Electrical Connection | Single phase 240V |
| Weight (kg) | 39 |
For customization, please contact us.
About Nabertherm: Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Lilienthal near Bremen. It offers wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces. With more than 70 years of experience and one of the largest engineering departments in the furnace industry, the name Nabertherm stands for high quality "Made in Germany", future-oriented innovations, worldwide service and reliability. More than 100,000 customers in over 100 countries underline this.
MSE Supplies is an authorized distributor for Nabertherm GmbH in North America.
