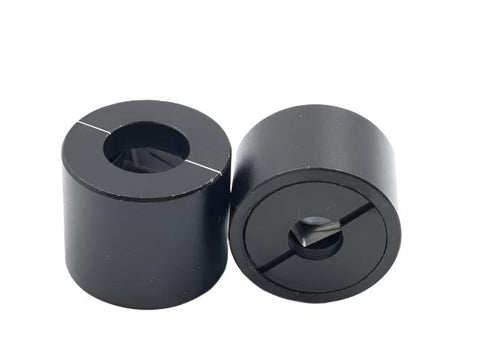

MSE PRO Wollaston Orthogonal Calcite Prisms
SKU: OCP-1-8
MSE PRO™ Wollaston Orthogonal Calcite Prisms
MSE supplies offers Wollaston Orthogonal Calcite Prisms. It is inverted by William Hyde Wollaston, is an optical device that manipulates polarized light. It separates randomly polarized or non-polarized light into two orthogonal linearly polarized outgoing beams.
The Wollaston prism consists of two orthogonal calcite prisms, cemented together on their base to two right triangle prisms with perpendicular optic axes. The Wollaston prism is commonly used as a polarizing beam splitter. The deviation of the two transmitted beams are nearly symmetric about the incident beam direction. The polarization of the output beams are parallel and perpendicular to the plane where the entrance and exit beam lie. The beam splitting angle varies with the wavelength, therefore the data in the data table below are approximate.
MSE Supplies can offer a variety of optical elements. Please contact us for customization or bulk orders.
Technical Data:
| Wave length Range | 300nm~2500 nm |
| Transmission | >85%,λ0=632.8 nm |
| Optical Damage Threshold | CW:50W/cm2 Pulsed: 100MW/cm2 |
| Extinction Ratio | >1 x 105:1 |
| Beamsplitting Angle(θ) | 15˚ |
| Clear Aperture | 8 |
| Diameter x Length | 25.4 x 17.0 |
