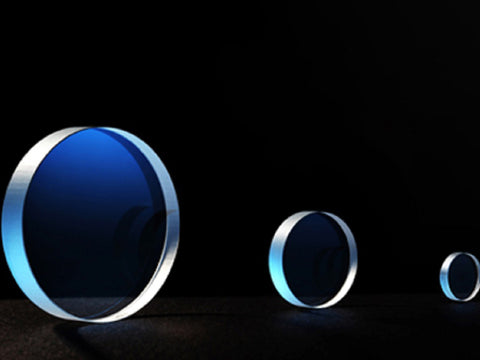

MSE PRO Uncoated Fused Silica Wedge Window, Round Shape

SKU: UWUVR-12.5-3

  • $ 7995
  • Save $ 800


MSE PRO™ Uncoated Fused Silica Wedge Window, Round Shape

Wedge windows can deflect the incident beam to a specified direction at a certain deflection angle. When used in pairs, the outgoing beam can be located in any direction in a pyramid which take the incident beam as the axis through the relative rotation of the two wedges. High precision wedge windows can avoid Etalon Effects caused by reflection of high-parallelism windows. Wedge windows can also prevent instability of laser output or mode hopping which caused by optical reflections. We offer uncoated or AR Coated wedged windows for your application.

Coating treatments can also be applied to enhance its transparency and anti-reflective properties. Please contact us for customized coating services.

Technical Data:

Diameter  12.50-50.80mm
Diameter Tolerance +0.0/-0.1mm
Thickness 3-10mm
Thickness Tolerance ±0.2mm
Wedge
30'±10'
Surface Quality 20-10
Bevel 0.2-0.5mmX45°
Surface Figure λ/10@633nm
Material UV grade Fused Silica

MSE Supplies can offer a variety of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
