MSE PRO Ultra Thin Lithium (6.5 um) Copper (10 um) Single Side Laminated Foil Anode for Lithium Metal Batteries, 100g/pack
This ultra lithium (6.5 um) copper (10 um) laminated foil is used as the lithium metal anode in a pouch cell or cylindrical cell for new generation Li-ion batteries, such as lithium metal batteries and solid-state batteries. Pouch cell is a type of battery design which is simple, flexible and lightweight. Compared with other battery design, pouch cell has the best packing efficiency, 90~95%.
The ultra thin thickness can reduce the cell weight/thickness, increase the energy and power density and enable the design of ultra thin cells.
This lithium copper laminated foil can be customized upon request, such as single/double sides lithium lamination, thickness and width of lithium and copper foil. Minimum order quantity applies for customized products. Please contact us by email: email@example.com to discuss your needs.
Never open the package in air. Store in Argon-filled glove box with moisture less than 2%RH.
Shipping and handling: This material is classified as a hazmat and requires special packaging and shipping to comply with regulatory requirements. Please contact us for specific details with shipping and handling.
Product is packaged in a dry room. There may be residual oxygen that will be released when the package is opened.
Due to the nature of the material, please inspect the product upon arrival. MSE Supplies will be only responsible for the manufacturing defects only after 1 week past delivery.
||100g/pack (Net weight including Li and Cu)
Cu (≥99.99% purity); Li (≥99.9% purity)

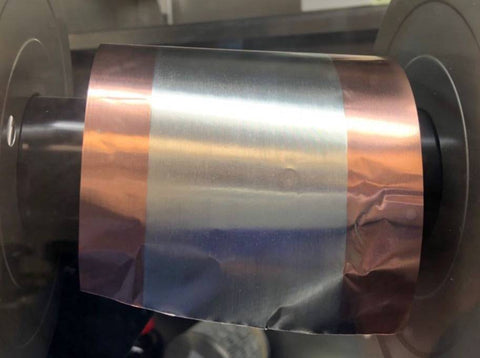

Lithium foil laminated on one side of Copper foil
Lithium foil: 6.5 um thick, 60 mm wide
Copper foil: 10 um thick, 100 mm wide
Lithium foil placed in center
|Package and shipping||This product must be shipped as a HAZMAT|
