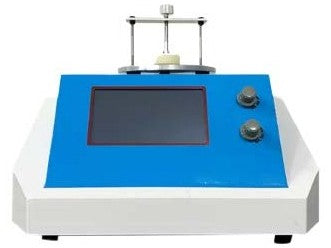

MSE PRO Transient Plane Heat Source Method Thermal Conductivity Tester

SKU: MA2691

  • $ 14,11995
  • Save $ 1,55000

Request a Quote

MSE PRO™ Transient Plane Heat Source Method Thermal Conductivity Tester

Overview

The MSE PRO™ Transient Plane Heat Source Method Thermal Conductivity Tester utilizes transient planar heat source (TPS) technology to measure the thermal conductivity of a wide range of materials. As a mid-scale thermal analysis method, the transient planar heat source technique significantly enhances measurement accuracy and efficiency, setting a new standard in thermal conductivity testing. It offers a fast, non-destructive, and reliable solution for evaluating thermal conductivity, making it ideal for quality control, material development, and laboratory research. Designed for user-friendly operation, it features a straightforward testing procedure that ensures ease of use without compromising performance.

Working Principle

Transient Planar Heat Source (TPS) technology, developed by Professor Silas Gustafsson of Chalmers University of Technology, is an advanced method for measuring thermal conductivity. It uses a disc-shaped, double-helix flat probe made from a conductive alloy, which functions simultaneously as a heat source and temperature sensor.

The principle is based on the transient temperature response of the probe when a current is applied, generating heat that diffuses through the surrounding material. The rate of heat diffusion—determined by monitoring resistance changes over time—correlates directly with the material’s thermal conductivity. The probe features a thin, double-layer insulating coating to ensure electrical insulation and mechanical stability. During testing, it is sandwiched between two sample sections, allowing precise, non-destructive measurements based on a well-defined mathematical model.

    Key Features

    • Fast & Accurate: Delivers results in just 5–160 seconds.

    • Non-Destructive: Samples remain intact and reusable.

    • Easy Sample Prep: No strict size requirements.

    • Versatile Compatibility: Suitable for solids, powders, liquids, colloids, pastes, and more.

    • Flexible Testing: Features a detachable probe and independent sample holder.

    • User-Friendly Interface: Intuitive LCD touchscreen for simple operation.

    • Instrument reference standard: ISO 22007-2 2008

    Test Objects

    A wide variety of materials can be tested, including metals, ceramics, alloys, minerals, polymers, composites, paper, fabrics, and foam plastics (e.g., flat insulation materials). Other testable objects include mineral wool, cement walls, glass-reinforced composite panels (CRC), cement polystyrene panels, concrete, fiberglass panels, honeycomb paper panels, colloids, liquids, powders, and both granular and paste-like solids.

    Technical Specification

    SKU# MA2691
    Test Range 0.005-300W/(m*K)
    Measuring temperature range Room temperature to 130°C
    Probe diameter No. 1 probe 7.5mm; No. 2 probe 15mm
    Precision ±3%
    Repeatability error <3%
    Measure time 5s to 160s
    Power supply AC 220V/60Hz
    Total power < 500W
    Sample temperature rise < 15°C
    Test sample power  No. 1 probe power 0<P<1W; No. 2 probe power 0<P<14W
    Sample specifications Single sample measured by probe No. 1 (15*15*3.75mm)
    A single sample measured by probe No. 2 (30*30*7.5mm)
    Note: The measurement of probe No. 1 is a low-conductivity material with a thinner thickness ≤0.2W/(m*K) . If the surface of the tested sample is smooth, flat and viscous, the samples can be superimposed

    Faster, simpler and more comprehensive than other methods

      Transient planar heat source method Laser method Hotline method Protection plate method
    Measurement methods Non-steady state method Non-steady state method Non-steady state method Steady state method
    Measure physical properties Get thermal conductivity and thermal diffusivity directly Directly obtain thermal diffusivity and specific heat, and calculate thermal conductivity from the output sample density value Get thermal conductivity directly Get thermal conductivity directly
    Scope of application Solid, liquid, powder, paste, colloid, granule Solid Solid, liquid Solid
    Sample Preparation No special requirements, simple sample preparation Complex sample preparation Simple sample preparation with specific requirements Large sample size
    Measurement accuracy ±3%, prefera up to ± 0.5% Preferably up to ± 10% Preferably up to ± 5% Preferably up to ±3%
    Physical model Planar heat source contact measurement, as long as the limited surface contact is good Non-contact heat source Wire heat source, the wire model must be in good contact Heat source contact type, need good surface contact
    Thermal conductivity range [w/(m*k)] 0.005-300 10-500 0.005-10 0.005-5
    Measure time 5-160S A few minutes Tens of minutes Hours
