MSE PRO Stepper Motorized Aluminum Alloy Rotation Stages (Angle 360°, Dia. 100mm) - MSE Supplies LLC

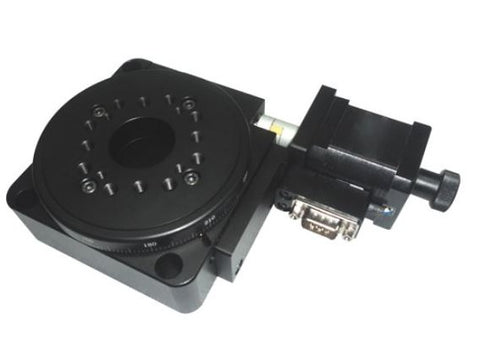

MSE PRO Stepper Motorized Aluminum Alloy Rotation Stages (Angle 360°, Dia. 100mm)

SKU: OPMS0244

To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

-Request a Quote

MSE PRO™ Stepper Motorized Aluminum Alloy Rotation Stages (Angle 360°, Dia. 100mm)

MSE PRO™ provides Stepper Motorized Aluminum Alloy Rotation Stages (Angle 360°, Dia. 100mm). Motorized rotation stages are precision-engineered platforms designed for smooth and accurate rotational motion control. Powered by advanced motorized drive systems, these stages deliver exceptional angular positioning and repeatability, making them ideal for tasks requiring precise orientation adjustments. With robust construction and high load capacity, they ensure reliable performance in demanding applications such as optical experiments, laser processing, automation systems, and metrology. Compatible with various control interfaces, motorized rotation stages offer flexibility and ease of integration into complex setups, providing a perfect solution for achieving precise rotational motion in research and industrial environments.

Key Features

  • Direct-drive concept provides faster rotating speeds and enhanced position sensitivity.
  • High efficiency DC torque motor optimizes available torque.
  • Proprietary glass scale encoder ensures 0.002° repeatability.
  • 100 mm diameter through-hole for convenient cable routing.
  • Standard stepper motors and RS232 interface.
  • Rotating shafts using multi-channel technology of precision processing, with high precision, large capacity and long life.
  • Using precision worm structure , exercise comfortable, forward and reverse rotation can be arbitrary and minimal backlash.
  • Can increase the limit function,  initial zero, change to servo motor, rotary encoder, accept the restructuring and customized products.

Angle Range  360 °
Stage Diameter φ100mm
Transmission Ratio 180∶1
Actuator Type Worm Gear
Travel Guide Bearing
Stepper Motor (1.8°) SST42D2121
Base Material Aluminum Alloy
Surface Treatment Black-anodized
Load Capacity 45kg
Weight 1.5kg
Resolution 0.01°（non MicroStep)
0.0005°=1.8″（20MicroStep Driver)
Speed 20°/sec
Repeatability 0.005°=18″
Backlash 0.005°=18″
Eccentric 5µ
Lost Motion 0.005°=18″

MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
