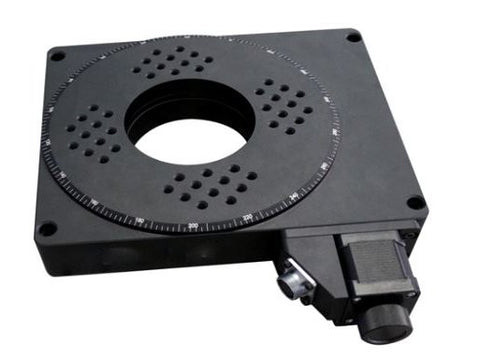

MSE PRO Stepper Motorized Aluminum Alloy Rotation Stages (Angle 360°, Φ200mm, Load Capacity 45kg)

MSE PRO™ Stepper Motorized Aluminum Alloy Rotation Stages (Angle 360°, Φ200mm, Load Capacity 45kg)

MSE PRO™ provides Stepper Motorized Aluminum Alloy Rotation Stages (Angle 360°, Φ200mm, Load Capacity 45kg). Motorized rotation stages are precision-engineered platforms designed for smooth and accurate rotational motion control. Powered by advanced motorized drive systems, these stages deliver exceptional angular positioning and repeatability, making them ideal for tasks requiring precise orientation adjustments. With robust construction and high load capacity, they ensure reliable performance in demanding applications such as optical experiments, laser processing, automation systems, and metrology. Compatible with various control interfaces, motorized rotation stages offer flexibility and ease of integration into complex setups, providing a perfect solution for achieving precise rotational motion in research and industrial environments.

Key Features

• Standard stepper motor and RS232 interface, the company's independently developed WNSC series motion controller can realize automatic control
• The rotating shaft system is precision-machined using multiple processes, with high matching accuracy, large load capacity and long service life
• Adopting the precision-developed worm gear structure, the movement is comfortable, and it can rotate in forward and reverse directions at will with minimal backlash
• The exquisitely designed backlash elimination structure can adjust the backlash gap caused by long-term use
• The special structural design ensures extremely low end jump and eccentricity of the rotating table, making the rotation more stable

  The central through hole of the rotating table has strict coaxiality requirements with the rotation center, and the central aperture of the rotating table has strict matching tolerance limits, which is convenient for customers to do precise positioning

  The scale ring on the outer periphery of the table is a laser-graded ruler, which is convenient for initial positioning and reading
• The stepper motor and worm are connected by imported high-quality elastic couplings, which ensure synchronous transmission and good deflection elimination performance, greatly reducing eccentric disturbance and low noise.
• The electric rotary table can be used horizontally or vertically, and can be combined with other types of tables to form a multi-dimensional electric adjustment table
