MSE PRO Pressure Adjustable Electric Crimper for CR20XX Coin Cells (Ar Glovebox Compatible)

SKU: BR0407

  • $ 3,41895
  • Save $ 57700


MSE PRO Pressure Adjustable Electric Crimper for CR20XX Coin Cells (Ar Glovebox Compatible)

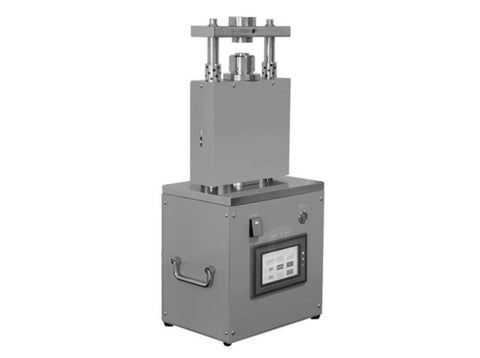

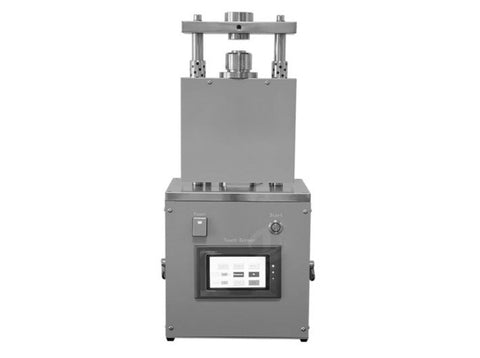

MSE Supplies offers a compact electrical crimper for sealing CR20XX series coin cells. The crimping pressure is adjustable via a (HMI+PLC) touch panel. Compared with manual hydraulic and pneumatic crimper, it has more accurate and consistent pressure during each crimping. Benefiting from its compact design, it can be easily transferred into the glove box.

Product Features:

  • Compact design
  • Ar glovebox compatible
  • (HMI+PLC) touch panel for easy operation
  • Accurate and consistent sealing pressure
  • Coin cell short circuit prevention by PTFE anti-corrosion core

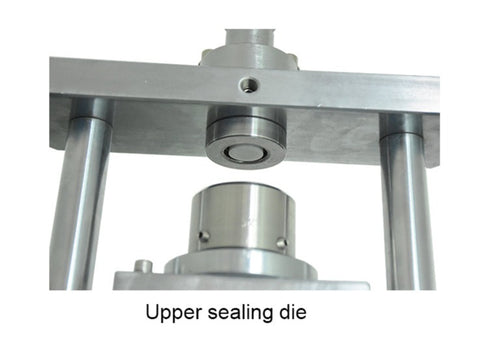

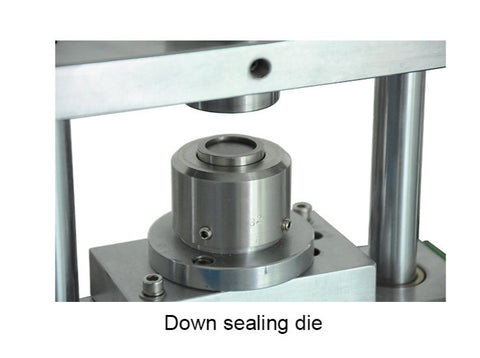

  • Optional crimping dies (such as CR2325, CR2450) available at extra cost
  • Optional disassembling dies available at extra cost

MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.

    Product SKU #

    BR0407

    Driven Type Electrical
    Voltage 110V
    Sealing Pressure 0~1200kg
    Weight 30kg
    Dimensions 250x190x450 mm
    Safety Feature Protection shield/enclosure (plexiglass)
    Warranty

    One year limited warranty with lifetime product support

    Rusted and damaged parts due to improper use or maintenance are not covered by warranty

    Note Clean the die with ethanol after each use
