Porous Carbon Foam (300 mm L x 200 mm W x 0.5 mm T) for Catalysis, Battery and Supercapacitor Research,  MSE Supplies

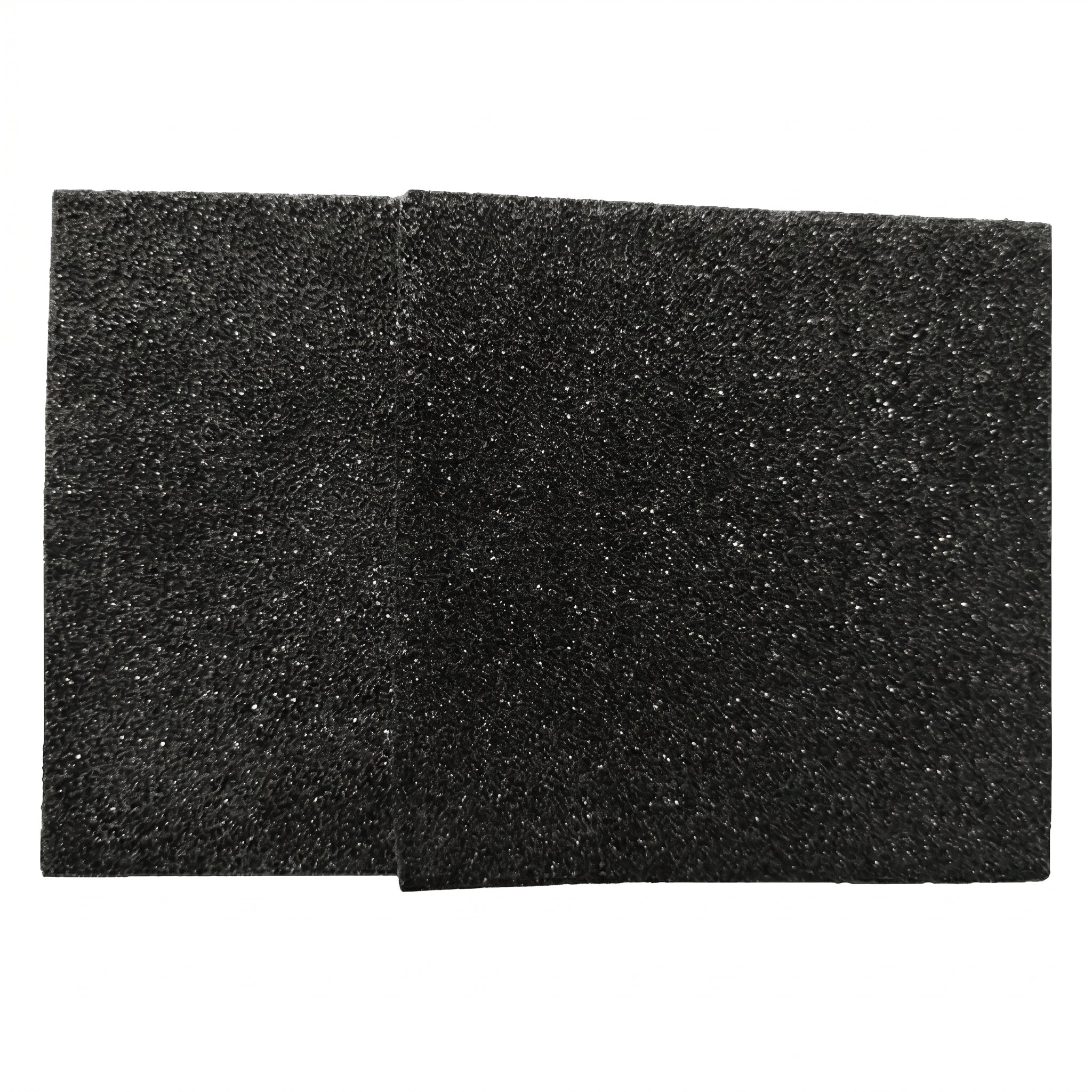

MSE PRO Porous Carbon Foam (300 x 200 x 0.5 mm) for Catalysis, Battery and Supercapacitor Research

  • $ 59500


Product details:

Because of its high porosity and conductivity, porous carbon foam is widely used as substrate / support for catalysis, battery and supercapacitor research. Porous carbon foam can also be used for gas / chemical absorption, water treatment and thermal management.

The size and thickness can be customized upon request. Please contact us at sales@msesupplies.com to discuss your special need.

Specifications of Porous Carbon Foam

Product SKU# BR0171
Pack Size 1 piece
Material  Carbon
Size 300 mm x 200 mm (Customizable)
Thickness 0.5 mm (Customizable)
Pore size 0.1~6 mm
Density  0.2~1.0 g/cm3
Porosity 30~80%
Tensile strength 2~5 MPa
Compressive strength 8~12 Mpa
Tensile modulus 300~500 MPa
Thermal expansion coefficient 5.0ppm/℃
Thermal conductivity 25 ~ 80W/m.k
Resistivity

1.0 × 10-2 ~ 10-5 Ω· M

Maximum operating temperature 600 ℃ (in air), 3000 ℃ (in inert gas)

 References:

1. Removal of copper, nickel and chromium mixtures from metal plating wastewater by adsorption with modified carbon foam, Chemosphere, 166, 207, 203-211

2. Designing nanographitic domains in N-doped porous carbon foam for high performance supercapacitors, Carbon, 139, 2018, 1152-1159

3. A Flexible 3D Multifunctional MgO‐Decorated Carbon Foam@CNTs Hybrid as Self‐Supported Cathode for High‐Performance Lithium‐Sulfur Batteries, Adv. Funct. Mater. 2017, 27, 1702573
