Porous Aluminum Foam (300 mm L x 200 mm W x 4 mm T) for Battery Research, MSE Supplies

MSE PRO Porous Aluminum Foam (100 mm L x 100 mm W x 4 mm T) for Battery Research

$ 45⁹⁵

Product details:

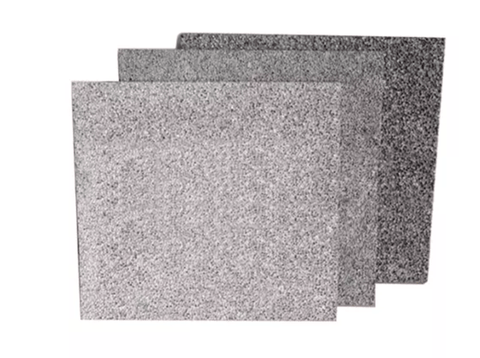

Porous aluminum foam has unique features such as high porosity, light weight, high rigidity and strength, and a large specific surface area. It can be used for noise, energy and heat absorption, sensor and catalysis applications. In battery research, the porous aluminum foam can improve the capacity, cycling performance and thermal management of batteries. Porous aluminum foam has been considered as a promising battery anode material.

Specifications of Porous Aluminum Foam
Product SKU#	BR0180
Pack Size	1 piece
Material	Aluminum (>98%)
Size	100 mm x 100 mm (Customizable)
Thickness	4 mm
Pore size	1.6 mm
Porosity	68~78%
Density	0.6-0.85g/cm³

References:

1. High power density Al-air batteries with commercial three-dimensional aluminum foam anode, Ionics, 26, 5045–5054(2020)

2. Thermal management improvement of an air-cooled high-power lithium-ion battery by embedding metal foam, J. Power Sources, 296, 2015, 305-313
