MSE PRO MSE PRO 225L Forced Air Oven Hozizontal Type LED Controller, Strength Galvanized Sheet Chamber
SKU: MA4137

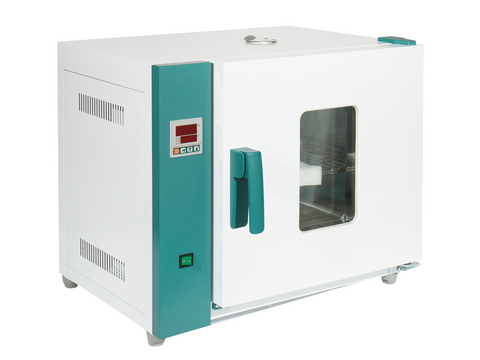

MSE PRO™ 225L Forced Air Oven Hozizontal Type LED Controller, Strength Galvanized Sheet Chamber
The MSE PRO Horizontal Forced Air Oven is engineered for high-precision and high-density sample drying applications. With horizontal air flow, space-efficient design, and excellent temperature uniformity, this oven ensures reliable performance for laboratories and industrial settings. It offers options for both forced fan cooling and natural convection depending on the model.
- Horizontal Forced Air Circulation: Ensures excellent temperature uniformity and maximizes usable chamber space.
- Efficient Cooling System: Features a forced fan cooling intake that keeps fan temperature below 50 °C, enhancing longevity.
- High Space Utilization: Optimized internal layout supports processing of large or dense sample loads.
- Consistent Performance: Provides stable thermal conditions ideal for demanding drying applications.
- Anti-Hot Handle Design: Newly designed handle reduces burn risk and improves operator safety.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Horizontal Drying Oven. Please contact us for more information.
Specifications:
| SKU# | MA4137 | |
| Cycle Mode | Forced convection | |
| Function | Temp. Range | RT+10-250℃ |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. Motion | ±1℃ | |
| Temp. Uniformity | ±2.5% | |
| Structure | Inner Chamber | High Strength Galvanized Sheet |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation layer | High quality rock wool board(with CE) | |
| Heater | Stainless steel electric heating tube | |
| Power rating | 3.0kW | |
| Exhaust hole | Φ35mm top(with function of test hole) | |
| Controller | Temp. control mode | Two temperature section PID intelligent |
| Temp. setting mode | Touch button setting | |
| Temp. display mode | LED Digital display | |
| Timer | 0-9999min(with timing wait function) | |
| Operation function | Fixed temperature operation, timing function, auto stop. | |
| Additional function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |
| Sensor | PT100 | |
| Safety device | Over temperature sound-light alarm | |
| Specification | Inner Chamber size(W*L*H) | 600*500*750 mm |
| Exterior size (W*L*H) | 902*622*986 mm | |
| Volume | 225L | |
| Shelf number | 25 | |
| Load per rack | 15 kg | |
| Shelf space | 25 mm | |
| Power rating (50/60HZ) | AC220V/13.6A | |
| Net Weight | 77 kg | |
| Accessory | Shelf | 2 |
| Shelf frame | 4 | |
| Optional accessories | Shelves | |
