Molybdenum Sputtering Target Mo, MSE Supplies

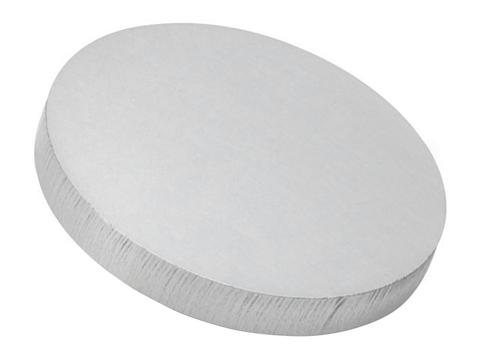

MSE PRO Molybdenum Sputtering Target Mo

$ 123³⁰

Quantity

Specifications Molybdenum Sputtering Target

Material Type	Molybdenum
Symbol	Mo
Atomic Weight	95.96 g/mol
Atomic Number	42
Color/Appearance	Grey, Metallic
Thermal Conductivity	139 W/m.K
Melting Point (°C)	2,617
Coefficient of Thermal Expansion	4.8 x 10^-6/K

Theoretical Density (g/cc)	10.2
Z Ratio	0.257
Sputter	DC
Max Power Density (Watts/Square Inch)	150
Type of Bond	Indium, Elastomer
Comments	Films smooth, hard. Careful degas required.

Name: Molybdenum
Symbol: Mo
Atomic Number: 42
Atomic Mass: 95.96
Melting Point: 2617.0 °C (2890.15 K, 4742.6 °F)
Boiling Point: 4612.0 °C (4885.15 K, 8333.6 °F)

Number of Protons/Electrons: 42
Number of Neutrons: 54
Classification: Transition Metal
Crystal Structure: Cubic
Density @ 293 K: 10.22 g/cm³
Color: silver

Product List Molybdenum Sputtering Target and Related Products

Molybdenum Metals

Name		Purity
Molybdenum	Mo	99.95%

Molybdenum Alloys

Name
Aluminum Chromium Molybdenum Tin Titanium Zirconium Alloy	AlCrMoSnTiZr Alloy	Al-Cr-Mo-Sn-Ti-Zr 25/25/25/12/3/10
Aluminum Molybdenum Alloy	AlMo Alloy	Al-Mo35/65,45/55
Aluminum Molybdenum Titanium Zirconium Alloy	AlMoTiZr Alloy	Al-Mo-Ti-Zr 30/22/4/44
Aluminum Molybdenum Tin Titanium Zirconium Alloy	AlMoSnTiZr Alloy	Al-Mo-Sn-Ti-Zr 30/35/11/3/21 Al-Mo-Sn-Ti-Zr 41/15/14/3/27
Aluminum Molybdenum Vanadium Alloy	AlMoV Alloy	Al-Mo-V 20/27/53
Cobalt Molybdenum Alloy	CoMo Alloy	Co-Mo 50/50
Molybdenum Iron Alloy	MoFe Alloy	Custom-made
Molybdenum Titanium Alloy	MoTi Alloy	Mo-Ti50/50
Nickel Molybdenum Alloy	NiMo Alloy	Ni-Mo 80/20 Ni-Mo 50/50
