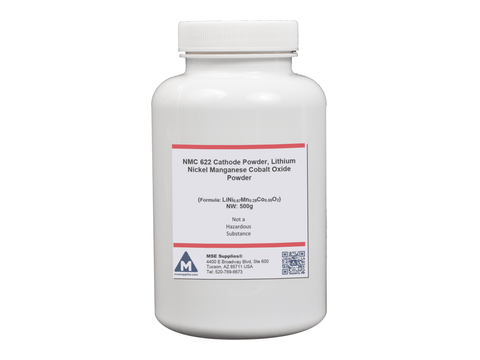

MSE PRO Lithium Nickel Manganese Cobalt Oxide NMC 622 Cathode Powder 500g, LiNi0.6Mn0.2Co0.2O2

  • $ 23900

Bulk orders? Please contact us for Bulk Quotation.

Qty (Each) Price (Each)
1 - 9 $ 239.00
10 - 19 $ 195.98
20 - 20+ $ 155.35

Lithium Nickel Manganese Cobalt Oxide, LiNi0.6Mn0.2Co0.2O2 NMC 622 Cathode Powder, 500g, 9-14um D50

Product No.: PO0113

Package Size: 500g

Specifications:

Appearance: Black powder

Molecular Formula: LiNi0.6Mn0.2Co0.2O2   (Ni:Mn:Co = 6:2:2)

Chemical Name or Material: Lithium Nickel Manganese Cobalt Oxide

SPECIFICATIONS



Specification

Typical Test Results

Elemental Content (wt%)

Ni+Mn+Co

57.0~62.0

58.8

Li

6.5~8.5

7.13

Na

<= 0.03

0.0118

Fe

<= 0.01

0.0004

Cu

 <= 0.005

0.0001

H2O

<= 0.10

0.08

Li2C03

0.20

0.0841

Particle Size Distribution (PSD) (um)

D10

>= 5.0

8.214

D50

10.0~14.0

10.382

D90

<= 30.0

13.021

Electrochemical Performance

First discharge efficiency (%)

Button half cell 0.1C, 3.0V-4.3V

>= 83.0

85.7

First discharge capacity (mAh/g)

Button half cell 0.1C, 3.0V-4.3V

>= 160

162.3

Physical Properties

BET (m2/g)

0.1~0.4

0.267

Tap Density (g/cm3)

>= 2.0

2.597

pH

<= 11.90

11.53
