Lithium Nickel Manganese Cobalt Oxide NMC 111 Cathode Powder 500g, Li<sub>1.05</sub>Ni<sub>0.33</sub>Mn<sub>0.33</sub>Co<sub>0.33</sub>O<sub>2</sub>, MSE Supplies

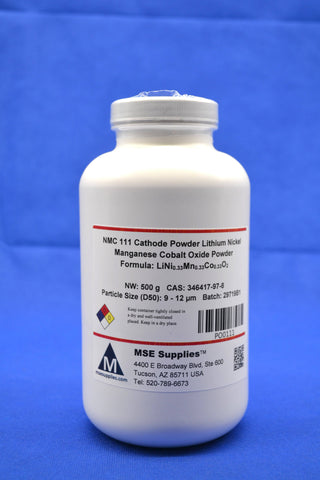

MSE PRO Lithium Nickel Manganese Cobalt Oxide NMC 111 Cathode Powder 500g, Li1.05Ni0.33Mn0.33Co0.33O2

  • $ 26900

Bulk orders? Please contact us for Bulk Quotation.

Qty (Each) Price (Each)
1 - 9 $ 269.00
10 - 19 $ 220.58
20 - 20+ $ 174.85

Lithium Nickel Manganese Cobalt Oxide,  Li1.05Ni0.33Mn0.33Co0.33O2 (NMC 111) Powder 500g, 7.5±2.5um D50

Product No.: PO0111

Package Size: 500g

Specifications

Appearance: Black powder
Molecular Formula:

  • Li1.05Ni0.33Mn0.33Co0.33O2  (Ni:Mn:Co = 1:1:1)

Parameter Specifications (wt%)
 Typical Value
Ni+Co+Mn ≥57.5 58.03
Ni 18.79~20.79 19.45
Co 20.0±1.5% 18.38
Mn 16.0±1.5% 18.96
Fe ≤ 0.001 0.0052
Cu ≤ 0.005 0.0000
 Li 7.0 ~8.0 7.67
Na ≤ 0.03 0.0092
H2O
 ≤ 0.05 0.03604

    Chemical Name or Material: Lithium Nickel Manganese Cobalt Oxide
    Particle sizes:

    • D10: ≥1.5 µm
    • D50: 7.5±2.5 µm
    • D90: ≤20 µm

    Tap density: ≥ 2.3 g/cm3
    pH: ≤11
    BET Specific Surface Area: 0.2 ~ 0.4 m2/g

        First Discharge Capacity (0.2C, button half open cell):

        145 - 150 mAh/g (4.2 - 2.7V)

        160 - 165 mAh/g (4.35 - 2.7V)

        170 - 175 mAh/g (4.4 - 2.7V)

        First discharge efficiency: 85%



        References:

        NMC111 from MSE Supplies is used in the following paper as the cathode material. This work is published by Nature Materials.

        Xiao, Y., Turcheniuk, K., Narla, A. et al. Electrolyte melt infiltration for scalable manufacturing of inorganic all-solid-state lithium-ion batteries. Nat. Mater. (2021). https://doi.org/10.1038/s41563-021-00943-2
