MSE PRO Lithium (20 um) Copper (11 um) Single Side Laminated Foil Anode for Lithium Metal Batteries, 100g/pack

  • $ 3,39500


Product Details:

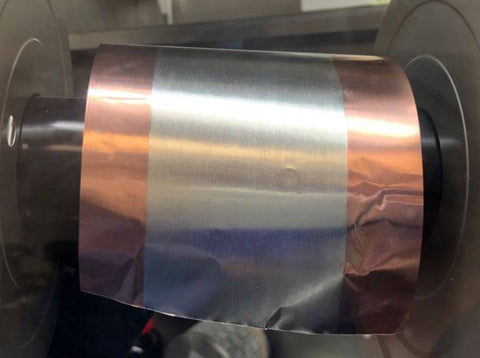

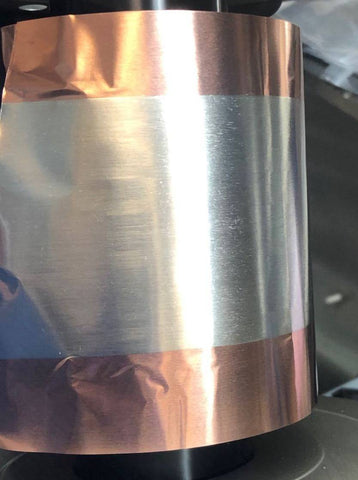

This lithium (20 um) copper (11 um) laminated foil is used as the anode in a pouch cell or cylindrical cell for new generation Li-ion batteries, such as lithium metal batteries and solid-state batteries. Pouch cell is a type of battery design which is simple, flexible and lightweight. Compared with other battery design, pouch cell has the best packing efficiency, 90~95%.

This lithium copper laminated foil can be customized upon request, such as single/double sides lithium lamination, thickness and width of lithium and copper foil.  Minimum order quantity applies for customized products. Please contact us for customization or bulk orders.

Never open the package in air. Store in Argon-filled glove box with moisture less than 2%RH.

Shipping and handling: This material is classified as a hazmat and requires special packaging and shipping to comply with  regulatory requirements. Please contact us for specific details with shipping and handling.

Product is packaged in a dry room. There may be residual oxygen that will be released when the package is opened.

Note:
Due to the nature of the material, please inspect the product upon arrival. MSE Supplies will be only responsible for the manufacturing defects only after 1 week past delivery.

Specifications

Product SKU# BR0308
Pack Size
100g/pack (Net weight including Li and Cu)

Material

Cu (≥99.99% purity); Li (≥99.9% purity)

Single side Lithium foil laminated on Copper foil

Overall Dimensions

Lithium foil: 20 um thick, 60 mm wide

Copper foil: 11 um thick, 100 mm wide

Package and shipping This product must be shipped as a HAZMAT
