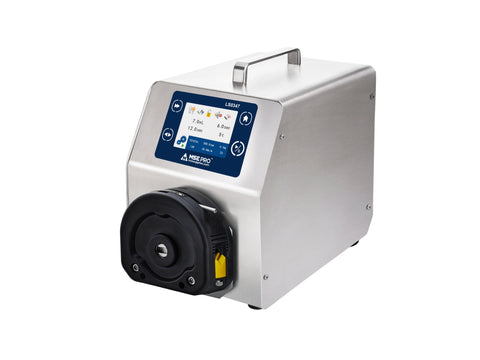

MSE PRO Large Flow Digital Distribution Peristaltic Pump with Touch Screen, Max Speed 600rpm
SKU: LS0347
MSE PRO™ Large Flow Digital Distribution Peristaltic Pump with Touch Screen, Max Speed 600rpm
MSE Supplies offers a Large Flow Digital Distribution Peristaltic Pump with Touch Screen, the max speed of which can be up to 600rpm. It features a 3.5-inch touch screen for operation, intuitive data display, and offers various function settings. The pump has two working modes: transmission and distribution, enabling repeated timing and quantitative dispensing. Its stainless-steel shell design ensures strength and durability, and it can store up to 8 sets of filling data. Additionally, it achieves fast filling and supports RS485/MODBUS.
Order Peristaltic Pump Tubing Through MSE Supplies HERE!
This Peristaltic Pump comes with KZ25 pump head and 2 meters of 36# silicon tube (ID: 9.6mm and WT: 2.4mm) as standard accessory. For additional tubes/pump heads beyond the standard configuration, please contact us for more details.
Brand: MSE PRO™
Features:
- LCD touch control: Features a 3.5-inch color LCD display with both Chinese and English options for user interface.
- Flow calibration: Equipped with a flow calibration function, ideal for transmitting liquids with higher precision.
- Adaptable to multiple pump heads: Compatible with YZ series, LP series, KZ series, and other pump heads, allowing for installation and cascading of pump heads.
- Data storage: Capable of storing up to 8 sets of data for users.
- Multiple modes: Offers two working modes—transmission and distribution—and can execute repeated timing and quantitative filling.
- Support for external control: Supports RS485/MODBUS communication protocol, analog control, and foot switch control.
Technical Data:
| SKU# | LS0347 |
| Speed Range | 0.1 ~ 600 rpm (reversible) |
| Speed Resolution | 0.1 rpm |
| Flow Rate | Max 6000 mL/min |
| Speed Mode | Touch screen adjustment |
| Pump Head | KZ25 as standard (For other types please contact us.) |
| Standard Tube Accessory |
Length: 2 m Inner Diameter: 9.6 mm (36#)
|
| Display Mode | Color LCD display |
| Power Supply | AC110 V |
| Power Consumption | ＜100 W |
| Timing Range | 0.1 s ~ 9999 min |
| Quantitative Range | 0.001 mL ~ 9999 L |
| External Control Method | Start control/direction control/speed control (0 ~ 5 V, 0 ~ 10 V, 4 ~ 20 mA optional) RS485 serial communication. |
| Drive Size | 278 x 182 x 239 mm |
Flow Rates for Different Tubing Compatible with the KZ25 Pump Head
Applicable Tubing: 15#, 24#, 35#, 36#
| Tubing size (ID x Wall thickness) | Min. flow rate (0.1rpm) | Max. flow rate (600 rpm) |
| 4.8 mm x 2.4mm (15#) | 0.3mL/min | 1800 mL/min |
| 6.4 mm x 2.4 mm (24#) | 0.5mL/min | 3000 mL/min |
| 7.9 mm x 2.4 mm (35#) | 0.7mL/min | 4200 mL/min |
| 9.6 mm x 2.4 mm (36#) | 1mL/min | 6000 mL/min |
