MSE PRO Laboratory Ultra-Pure Water Filtration System, 90L/H - MSE Supplies LLC

MSE PRO Laboratory Ultra-Pure Water Filtration System, 90L/H

SKU: MA1111

  • $ 4,98995
  • Save $ 59900

Request a Quote

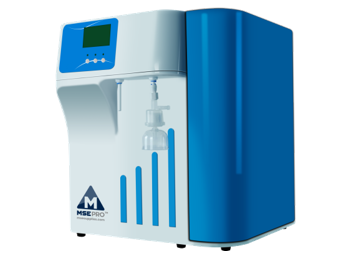

MSE PRO™ Laboratory Ultra-Pure Water Filtration System, 90L/H

Product Features

  • Durable and User-Friendly Design: The case features a plastic spraying process with a side-opening door for easy access. The filtering system uses an 11” U-shaped Korean quick-inserted filter column, simplifying replacement and maintenance while enhancing water quality and quantity.

  • Advanced Display & Monitoring: Equipped with a backlit LCD display and dual waterway online monitoring, the system simultaneously displays RO conductivity, UP resistivity, and real-time equipment operating status.

  • Intuitive Menu Operation: Users can modify and set multiple measurement parameters. The system includes various operating status displays and indicator lights for immediate status updates.

  • Water Quality Alerts & Automatic Functions: Includes DI water and ultra-pure water quality alarm prompts. The system supports automatic filter replacement, adjustable water withdrawal time settings, and touch-button dispensing with DI & UP water light indicators.

  • Portable Water Testing: Comes with a portable test pen to measure TDS content, conductivity, and water temperature anytime, anywhere.

  • High-Quality Piping & Sterilization: Utilizes quick-plug pipeline interfaces with NSF-certified joints. Dual-wavelength UV lamps ensure effective sterilization and TOC reduction, while an imported 5000D ultrafiltration module efficiently removes endotoxins and heat sources.

  • Data Connectivity & Smart Integration: Features an RS-232C communication interface for seamless connection with intelligent instruments, enabling data transmission and optional record printing.

  • Convenient Water Dispensing: The system offers an optional 3-meter telescopic water gun for effortless water extraction, enhancing efficiency and flexibility.

  • Optional Ultra-Pure Water Circulation: The system can be equipped with an internal ultra-pure water circulation module to maintain consistently high water quality.

Water Filtration Process

Product Picture

Technical Specification

SKU# MA1111
Water inlet method Self-priming water inlet
Water output Depends on the water inlet, 10 liters of water
inlet and 10 liters of water outlet in one hour
Maximum water output 90 Liter per hour
Production speed 1.5-2 L/min
The water requirements RO water, deionized water or distilled water, etc.
Conductivity<20μS/cm
Deionized (DI) Water Parameters (ASTM TYPE II Grade Water)
Resistivity (25℃) 10-16 M Ω. cm @ 25 ℃
Conductivity <0.1μS/cm
Total organic carbon (TOC)  <30 ppb
Ultra Pure (UP) Water Parameters (ASTM TYPE I Grade Water)
Resistivity (25℃) 18.25 M Ω. cm @ 25 ℃
Heavy metal ion < 0.01 ppb
Total organic carbon (TOC)  <10 ppb
bacteria < 1 cfu/ml *(with terminal filter)
Particulate matter (> 0.1 microns) <1/ml
Application Applicable to all kinds of physical and chemical detection, biochemical analysis, blood examination, micro analysis, washing, HPLC, IC, GC, analytical experiments.
Power Suppliy 110V/60HZ
The system configuration Host machine (including 1 set of purification column)+TDS pen + accessory bag


Filter function

Granular activated carbon filter Remove color, odor, residual chlorine and heavy metals
Deionized-purification column Ion exchange resin bed, H+ and OH- ion removal
Ultra-purification column Ion exchange resin bed, H+ and OH- ion removal
0.2μm terminal filter Final removal for < 0.2μm bacteria


Product consumables list

Filter element Replace cycle Qty
11" activated carbon filter About 4-6 month 1 pc
11" ultra-purification column (imported resin) About 1000 liter/ pc 2 pcs
11" ultra-purification column (imported resin) About 1000 liter/ pc 4 pcs
0.2 μm imported PES terminal filter About 2-3 years 1 pc



Note: The filter replacement cycle in the table is estimated based on previous customer experience. It is only a suggestion. The specific period is determined by the water quality.
