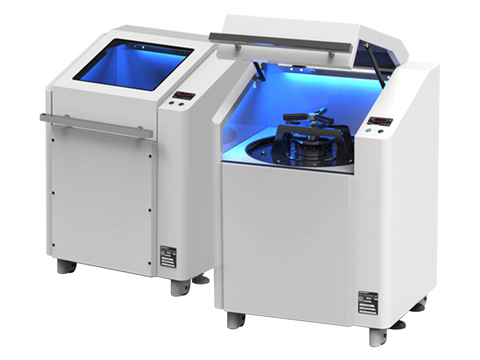

MSE PRO Laboratory Single-Station Disc/Cup Vibratory Mill
SKU: MA0931
MSE PRO™ Laboratory Single-Station Disc/Cup Vibratory Mill
MSE PRO™ Laboratory Single-Station Disc/Cup Vibratory Mill quickly grinds larger particle size samples to 20 microns, suitable for non-destructive crushing and fine grinding.
Recommended to purchase required grinding discs.
- High Efficiency: Quickly processes large volumes of samples.
- Wide Applicability: Suitable for samples with varying hardness and properties.
- High Precision: Provides fine and uniform grinding results.
- Ease of Use: Simple design for easy operation and cleaning.
- Non-Destructive Grinding: Suitable for non-destructive crushing and fine grinding of larger particle samples.
- Fast Grinding: Achieves particle size reduction in 3-5 minutes.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Mills. Please contact us for more information.
Specifications:
| SKU# | MA0931/0932/0933 |
| Maximum Sample Size | < 15mm |
|
Particle Size Range |
< 20um |
| Grinding Disc Speed | 1500rpm (adjustable) |
| Motion Type | Circular Motion |
| Vacuum/Inert Protection Grinding |
Supported |
| Sample Characteristics |
Medium-Hard | Hard | Brittle | Fiber-containing |
| Main Functions | Continuous and Intermittent Operation | Timer | Power-Off Memory | Quick Clamping Device |
| Additional Functions | LED Lighting | Observation Window |
| Time Setting | 9999min |
| Functions | Reversible funnel, observable flywheel guard, dust-proof funnel, vacuum port |
| Number of Grinding Discs | 1 |
| Grinding Disc Volume | 250/500/2000mL |
| Grinding Disc Material | Tungsten Carbide | Zirconia | Agate | Stainless Steel |
| Electrical Description | 380V,50-60Hz,1.5KW |
| Net Weight | 228kg |
| Dimensions (mm) | 780×650×1080 (W×L×H) |
| Certificates | CE |
| Optional Configurations | Liquid Nitrogen Cooling | Touchscreen Operation System | Grinding Disc Temperature and Pressure Monitoring |
