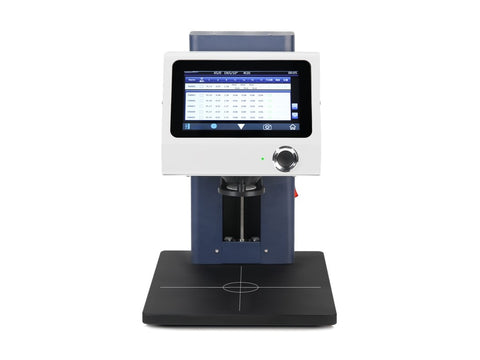

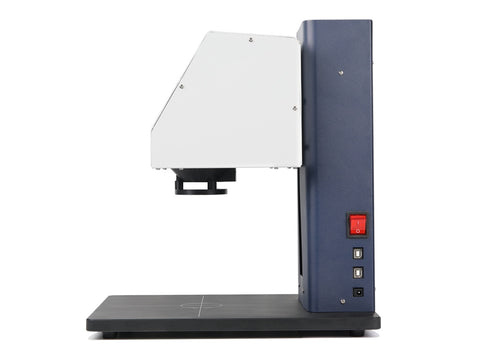

MSE PRO Laboratory D/8 Non-contact Benchtop Spectrophotometer
SKU: MA7014
MSE PRO™ Laboratory D/8 Non-contact Benchtop Spectrophotometer
MSE Supplies offers a Laboratory D/8 Non-contact Benchtop Spectrophotometer which adopts the D/8 (diffuse illumination, 8° direction reception, SCI includes specular reflected light) to achieve precise non-contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission in laboratories and R & D industries. Moreover, it can also be used for accurate color measurement and quality control of automated production lines. Its unique innovative design can not only provide non-contact measurement scheme directly from the production line, but also ensure stable and high-precision measurement results.
MSE supplies offers various Spectrophotometers with varying accuracy and specifications as well as other optical equipment, please contact us for more information.
Technical Specifications:
| SKU | MA7014 |
| Optical Geometry | D/8 (diffuse illumination, 8° direction reception, SCI includes specular reflection light) |
| Standards | Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
| Spectrophotometric Mode | Concave Grating |
| Light Source | Full spectrum LED light |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Measurement Range | 0-200% |
| Measuring Aperture | Φ20mm (Standard) Φ10mm (Optional) |
| Non-contact Distance | 3mm (±0.2mm) |
| Sample Height | 0~160mm |
| Distance Adjustment Method | Manual adjustment and automatic adjustment (test height can be stored) |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99 |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*00, ΔE(Hunter), DINΔE99 |
| Other Colorimetric Index |
WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM 313), Metamerism index MI, |
| Observer Angle | 2° /10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8 , F9, F10(TPL5), F11(TL84), F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.0s (0.2~1.5s Adjustable) |
| Measuring Repeatability |
In the optimal test mode (single measurement time 1.5 seconds): Spectral reflectance: Standard deviation within 0.1% Chromaticity value: Within ΔE*ab 0.04 |
| Inter-instrument Error |
Within ΔE*ab 0.25 (Average for 12 BCRA Series II color tiles) |
| Locating Method | Camera Locating, stabilizer cross position |
| Dimension (LxWxH) | 330 x 250 x 370 mm |
| Weight | 10 kg |
| Power Supply | DC 24V, 3A Power Adapter |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7" TFT Capacitive Screen-touch Display |
| Data Storage |
Continuous mode 30,000, Sample mode 18,000, Total no more than 48,000 readings |
| Data Port | USB |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
