MSE PRO Laboratory Small Scale 5-Ton Manual Hydraulic Pellet Press
MSE PRO™ Laboratory Small Scale 5-Ton Manual Hydraulic Pellet Press
Our lab scale 5-Ton manual hydraulic pellet press with digital display has unique features such as compact structure, small volume, fast compression, simple operation, easy cleaning and low maintenance. It is widely used to press powders into pellets for FTIR/XRF analysis, battery electrode material, metallurgy, ceramic and catalysis applications.
At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.
If you need other maximum pressure or customized design, please contact MSE Supplies.
If you use this press inside of glove box, please check the O-ring seal periodically to avoid oil leak.
| Product SKU # |

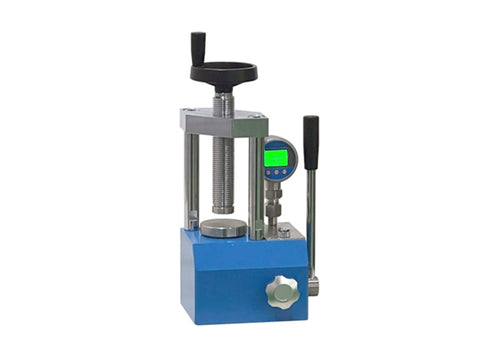

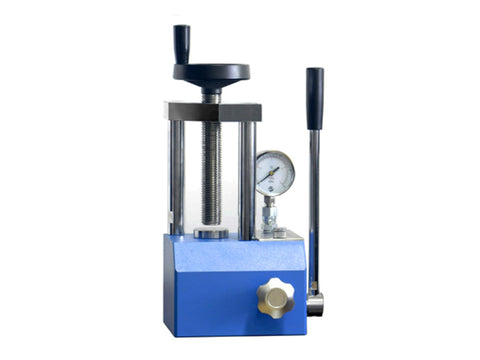

Regular Pressure Gauge: PR0318A Digital Pressure Gauge: PR0318 |
| Pressure range | 0-5 Tons (31.4 MPa) |
| Max pressure | 5 Metric Tons |
| Maximum travel distance of the piston | 30mm |
| Diameter of piston | 45mm |
| Pressure stability | ≤1MPa/10min |
| Sample stage diameter | 80mm |
| Maximum sample height | 130mm |
| Dimensions |
225mm x 155mm x 380 mm
|
| Net weight | 28kg |
| Warranty | Limited one year warranty, not responsible for the damage caused by improper use |
| Note | Please clean the press after each use to ensure the best performance and longer life time |
