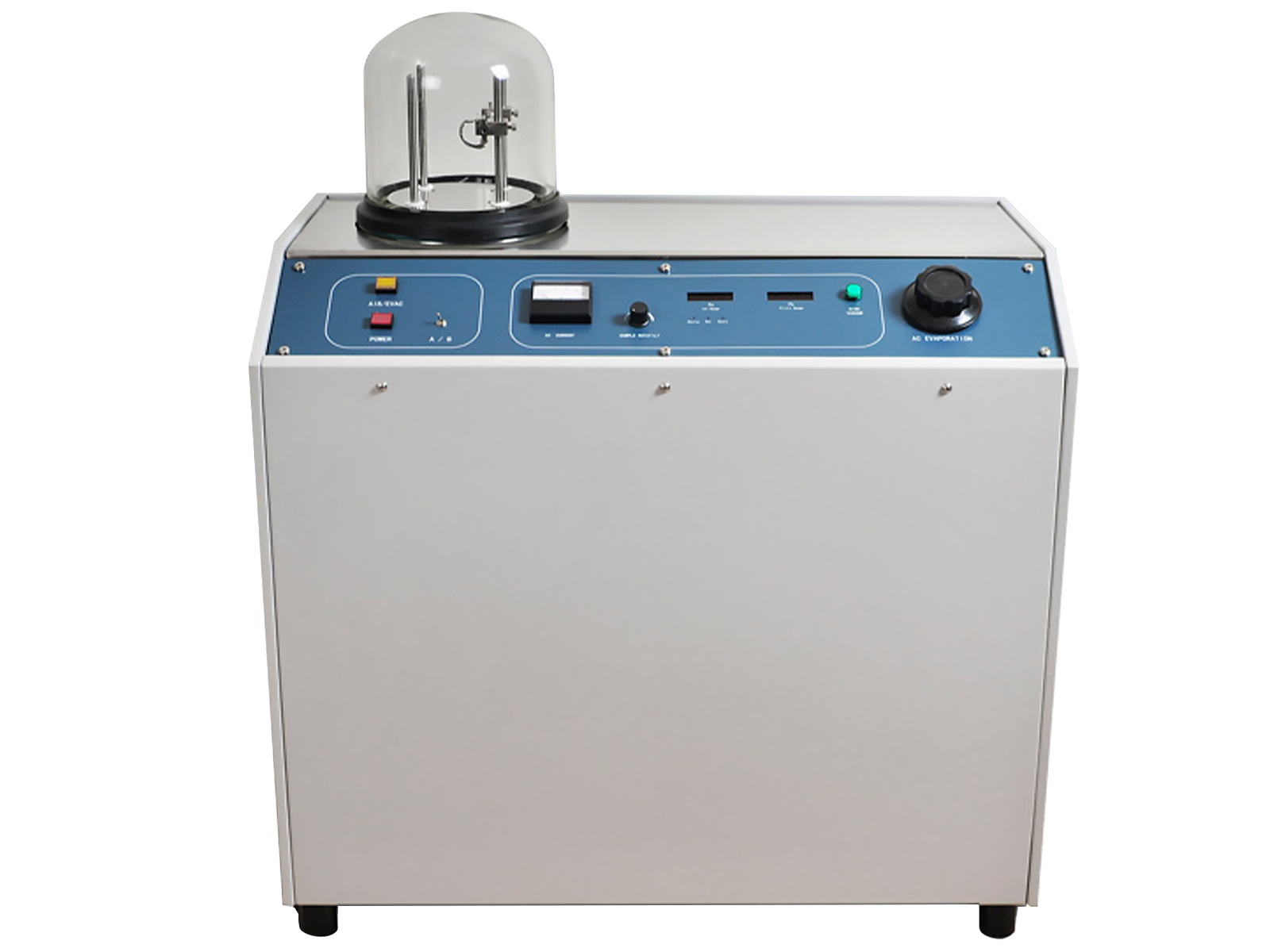

MSE PRO High Vacuum Thermal Evaporation Carbon Coater
MSE PRO™ High Vacuum Thermal Evaporation Carbon Coater
MSE Supplies offers a Thermal Evaporation Carbon Coater that is ideal and designed for lab Transmission Electron Microscopy (TEM) sample preparation. This carbon coater is a versatile and highly effective tool, designed specifically for TEM analysis. With its customizable carbon fiber evaporation system, it can produce high-quality carbon films of varying thicknesses for a wide range of applications, including biological samples, polymers, and nanomaterials. Additionally, the coater can be used with tungsten wire to evaporate metals like Au and Ag, further expanding its capabilities.
Working vacuum pressure can be achieved quickly when using proper vacuum pump. Vacuum pump is included.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Technical Specifications
| SKU# | MA0593 |
| Vacuum Pump Set | (Oil required) Rotary Vacuum Pump |
| Rotary Pumping Speed | 50Hz: 8m3/h (2.2L/s); 60Hz: 9.6m3/h (2.6 L/s) |
| Max Evaporation Current | 100A |
| Vacuum Limit | 5x10-4Pa |
| Working Pressure | 5x10-3Pa |
| Vacuuming Time | < 5Min (2Pa) |
| Vacuum Measure | Measuring range from atmosphere to 1x10-5Pa |
| Chamber | φ250 * 300mm, Scratch Resistant Quartz Glass |
| Evaporation Target Source | Carbon Rod (Dia. 5mm); also comes with a tungsten wire basket to evaporate metals like Au and Ag |
| Operation Method | Instruction Manual |
| Weight | 80kg |
| Size, L*W*H | 900*510*1100mm |
| Power Supply | AC 110V 60Hz |
| Power Consumption | < 3000W |
| Warranty | One year limited warranty with lifetime product support |
