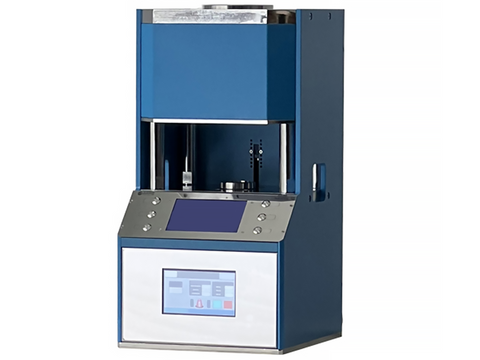

MSE PRO High Temperature 10-Ton Automatic Heated Pellet Press (900°C)
MSE PRO™ High Temperature 10-Ton Automatic Heated Pellet Press (900°C)
MSE PRO™ benchtop 10T Automatic heated lab press is designed for heated pressing of polymer, ceramic powder and electrode/membrane films. The water-cooling jackets are installed with the heating plates to allow the heated plates to achieve fast cooling (The water chiller is optional for purchase at extra cost, for more detail please contact us).
At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.
| Brand | MSE PRO™ |
| SKU | PR0453 |
| Pressure range | 0-10 Metric Tons |
| Heating range | Up to 900°C |
| Cylinder Stroke | 80mm |
| Pressure holding time | ≥1s (no time limited) |
| Sample size |
⌀10-30mm |
| Mold outside dimension | ⌀50x90mm |
| Chamber inner diameter | ⌀60mm |
| Hot press dimension (LxWxH) | 400mmx380mmx780mm |
| Power supply | 110V |
| Net weight | 170kg |
| Warranty | Limited one year warranty, excluding damages caused by improper use |
| Note | Please clean the press after each use to ensure the best performance and longer life time |
