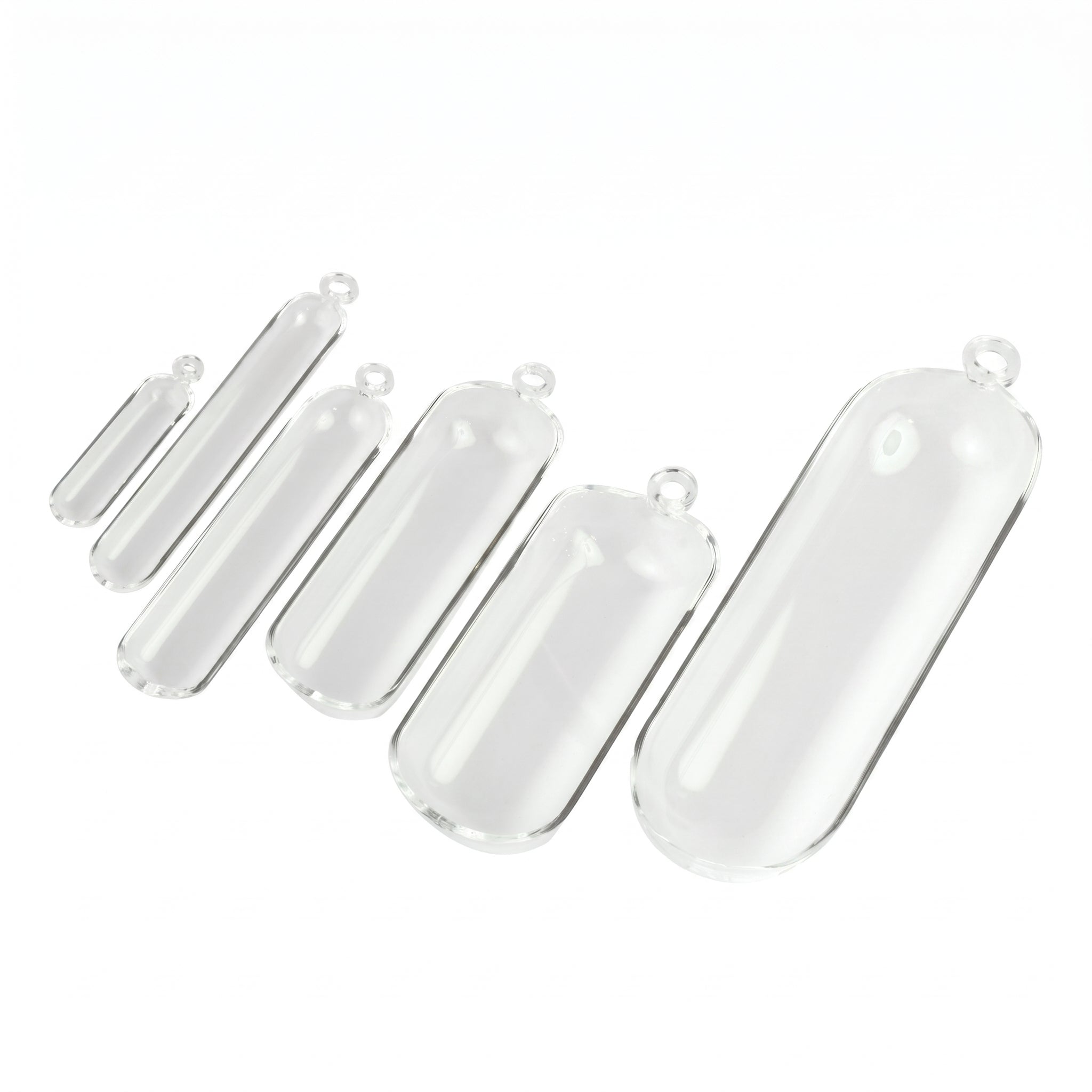

MSE PRO High Purity Quartz Boat

SKU: JA1151

  • $ 1695
  • Save $ 200

Product details

Quartz boats (made with >99.99% high purity quartz) have excellent thermal shock resistance and are chemically inert to most elements and compounds, including virtually all acids, regardless of concentration, except hydrofluoric acid. It can withstand the temperature up to 1200oC. Quartz boat is widely used for material melting and chemical reaction in tube furnaces.

Powder processing is recommended for the best calcination and sintering results. MSE Supplies offer a variety of balling milling equipment and accessories for powder processing.

Standard Products and Specifications of quartz boats from MSE Supplies

Purity: >99.99% SiO(4N purity)

Maximum temperature: 1200 °C

Recommend to use the quartz crucible below 1000 °C. The crucible may crack or deform under continuous heating above 1000 °C.

The dimensions are for reference only. If you require tight tolerance, please contact us for customization.

Quartz boats are considered as consumables which are not covered by warranty.

Capacity (mL) Length (mm) Width (mm) Height (mm) Suitable Tube ID (mm)
JA1151 2.5 61 15 6.9 ≥16
JA1152 6 114 18 8.5 ≥19
JA1153 15 113 25 12 ≥26
JA1154 30 119 35 17.5 ≥36
JA1155 51 116 45 22.7 ≥46
JA1156 100 171 50 23.5 ≥51
