MSE PRO High Purity 99.99% Quartz Tubes

MSE PRO High Purity 99.99% Quartz Tubes

SKU: JA1387

  • $ 1995
  • Save $ 300

Product details

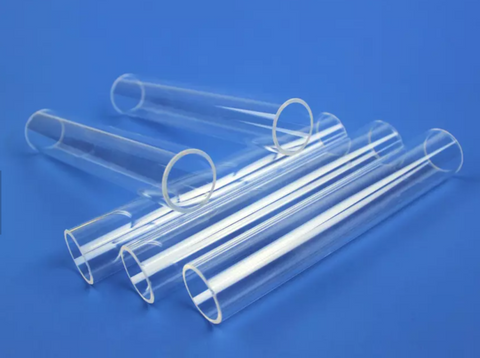

Quartz tubes (made with >99.99% high purity quartz) have excellent thermal shock resistance and are chemically inert to most elements and compounds, including virtually all acids, regardless of concentration, except hydrofluoric (HF) acid. Quartz can withstand high temperatures up to 1200 °C. Quartz tubes are widely used in tube furnace, for materials melting and chemical reactions in both materials science research and industry.

Powder processing is recommended for the best calcination and sintering results. MSE Supplies offer a variety of balling milling equipment and accessories for powder processing.

Standard Products and Specifications of Quartz Tube from MSE Supplies

Purity: >99.99% SiO(4N purity)

Maximum use temperature: 1200 °C.

Both ends are open

It is recommended to use the quartz tube below 1000 °C. The tube may crack or deform under continuous heating above 1000 °C.

Quartz tubes are consumables and not covered by any warranty.

OD (mm) ID (mm) Length (mm)
JA1387 18 15 300
JA1388 25 22 300
JA1389 25 22 600
JA1390 50 46 610

Dimensions can be customized upon requested. Please contact us for customization or bulk order. The dimensions listed above are for reference only. Please contact us if you need tight tolerance.
