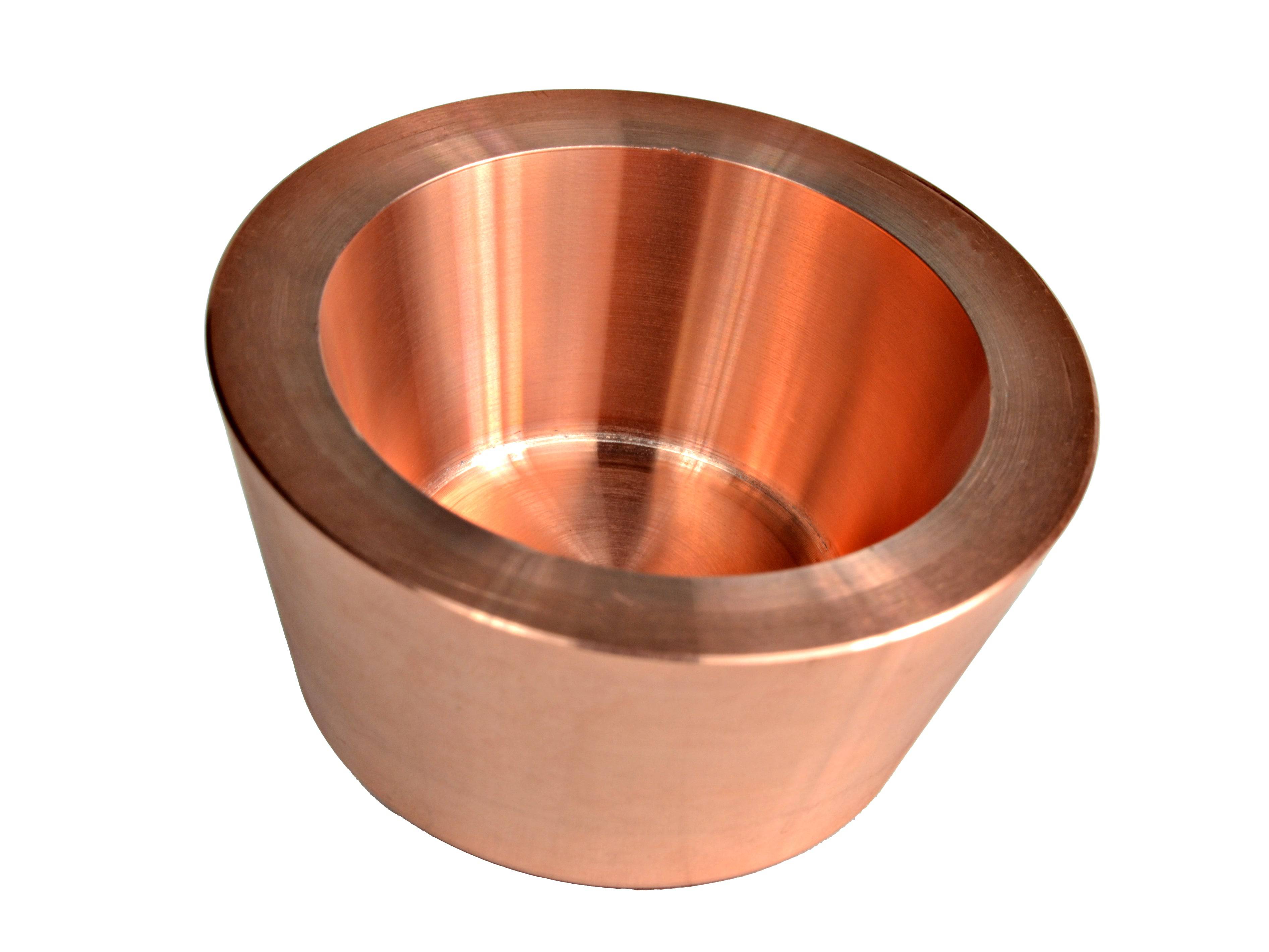

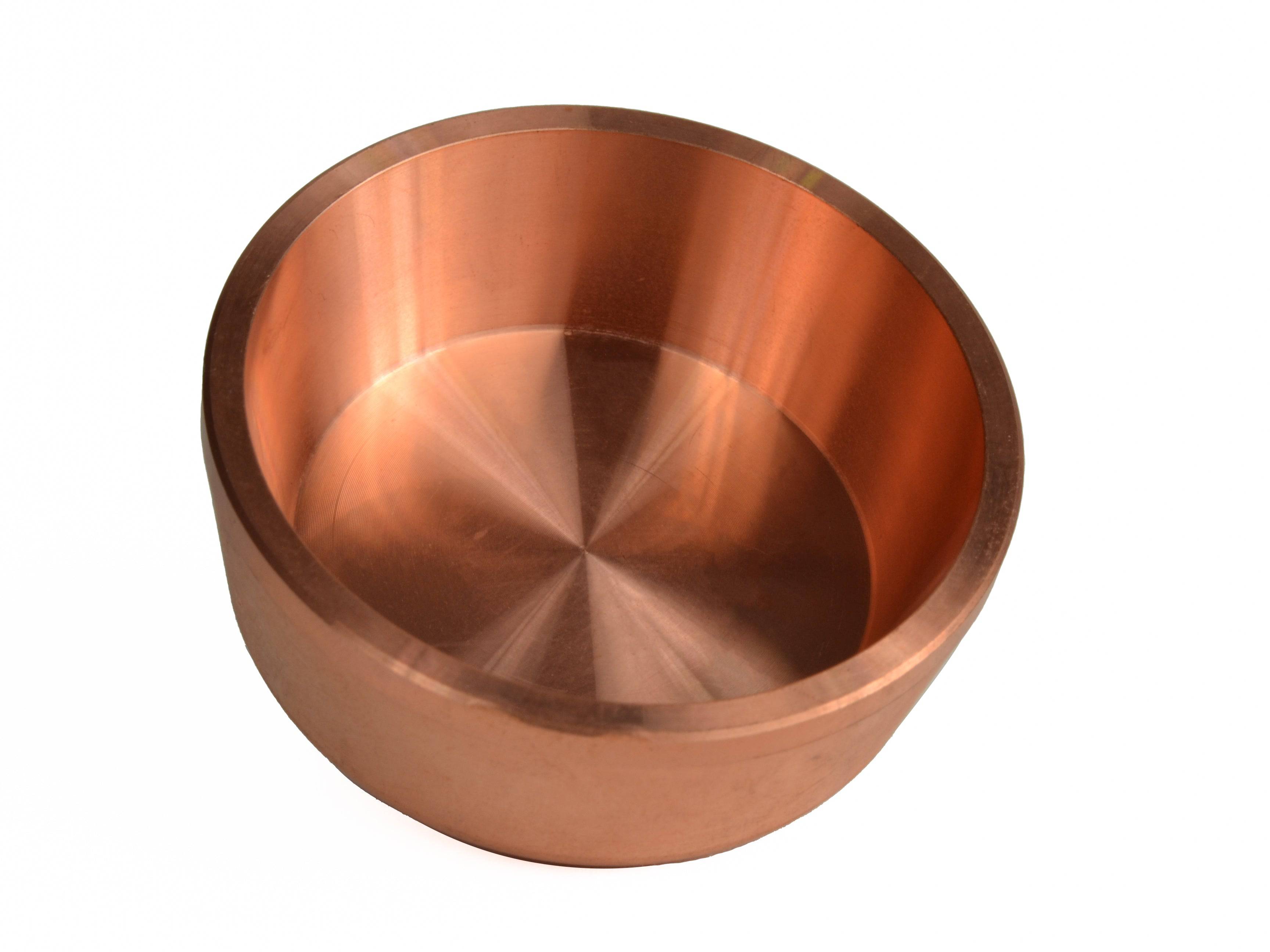

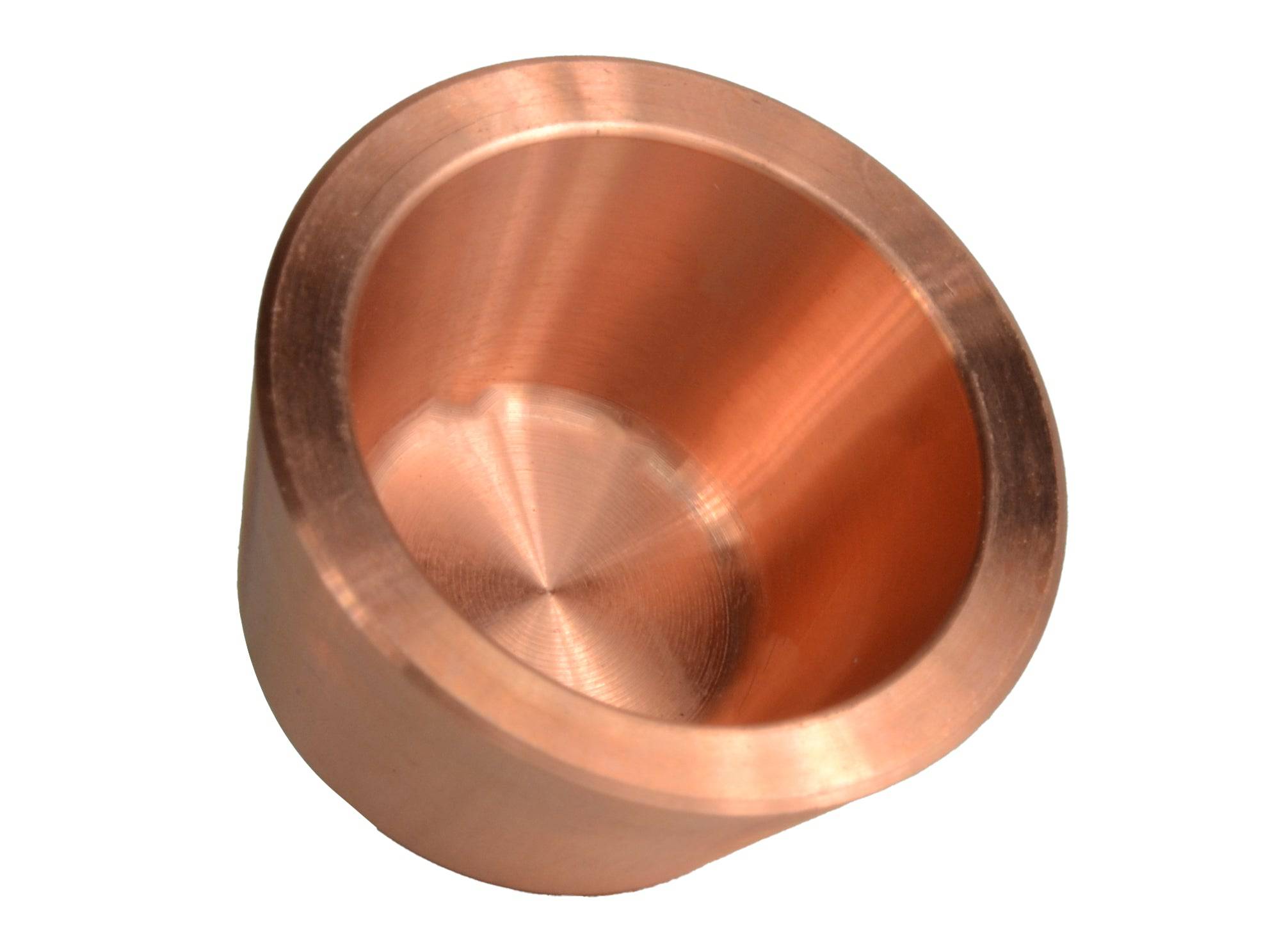

MSE PRO High Purity (99.95%) Copper (Cu) Crucibles

  • $ 6495
  • Save $ 3005


Product details

Copper (Cu) has high electrical conductivity (59.6×106 S/m) and high thermal conductivity, second highest (second only to silver) among pure metals at room temperature. Copper crucible offered by MSE Supplies are made of high purity Cu (99.95%), which is widely used for oxidation induction time (OIT) determination and for the catalytic acceleration of oxidations.

Powder processing is recommended before the calcination in a crucible. MSE Supplies offers a variety of balling milling equipment and accessories for powder processing.

Standard Products and Specifications

Material: Copper (99.95%)

Melting point: 1084 ℃ (literature)

Recommended fill rate: 67~75%

Don't use copper crucible in air or oxygen-rich environment.

SKU# Capacity (mL) Top Diameter A (mm) Height B (mm) Wall thickness C (mm) Angle D (°) Comparable to
JA1377 2 21.5 (0.846") 11.8 (0.465") 2.4 (0.093") 15
JA1378 7 28.6 (1.125") 13.2 (0.52") 2.4 (0.093") 15 Krut J. Lesker EVCEB-23CU
JA1379 15 37.6 (1.48") 17.0 (0.67") 3.2 (0.125") 15 Krut J. Lesker EVCEB-13CU
JA1380 40 51.6 (2.03") 25.9 (1.02") 6.4 (0.25") 15 Krut J. Lesker EVCEB-6MCU
Copper crucible dimensions can be customized upon request. Please contact us for a quote.
