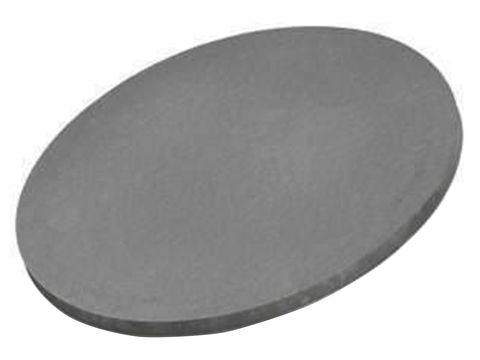

MSE PRO Hastelloy C276 Sputtering Target
Hastelloy C276 Sputtering Target
Hastelloy® C-276 alloy (UNS N10276), a nickel-chromium-molybdenum alloy, has an excellent welding performance due to the extremely low carbon and silicon contents. It was widely accepted in the waster treatment, chemical process and associated industries.
| Chemical Compositions | |
|---|---|
| C | Carbon 0.01 max |
| Mn | Manganese 1.0 max |
| Si | Silicon 0.08 max |
| Cr | Chromium 16.0 |
| Mo | Molybdenum 16.0 |
| Co | Cobalt 2.5 max |
| Fe | Iron 5.0 |
| W | Tungsten 4.0 |
| V | Vanadium 0.35 max |
| Cu | Copper 0.5 max |
| Ni | Nickel balance |
Target Specifications:
| SKU # | TA2304 |
| Material |
Hastelloy C276 |
| Purity | 99.9% |
| Dimensions |
2.0 inches in diameter and 0.25 inch thick Other typical sizes and customized sizes are available upon request. |
