MSE PRO Glow Discharger for SEM/TEM Sample Preparation - MSE Supplies LLC

MSE PRO Glow Discharger for SEM/TEM Sample Preparation

  • $ 13,30000
  • Save $ 70000

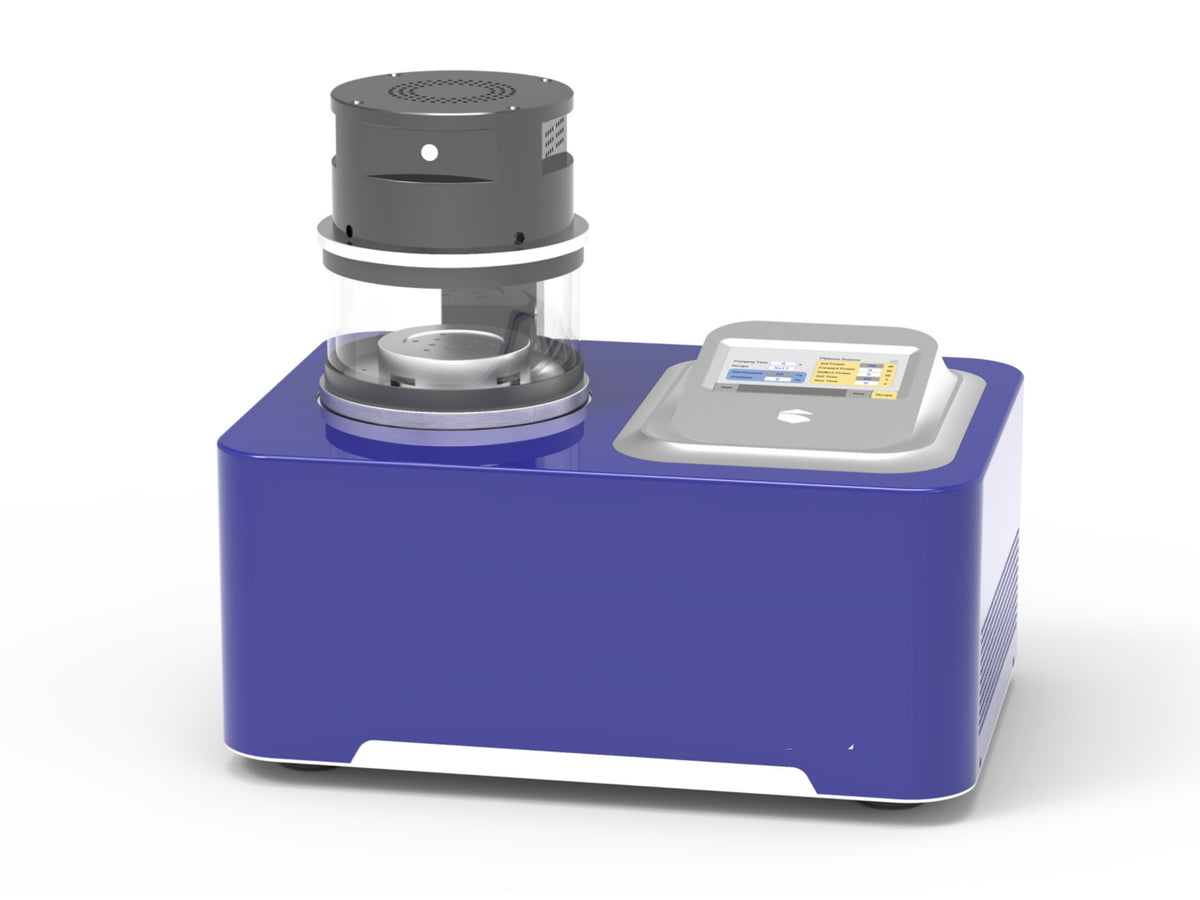

MSE PRO™ Glow Discharger for SEM/TEM Sample Preparation

MSE Supplies offers a Glow Discharger that is ideal for lab TEM/SEM sample preparation. It is using a high-quality constant power RF radio frequency power source, which ensures process repeatability. The induction RF discharge mode also significantly reduces the thermal impact on samples and damage from ion bombardment. It is particularly suitable for cleaning, surface activation, hydrophilization, and other purposes for TEM or SEM biological samples or wafer samples sensitive to temperature or bombardment. The touchscreen enables automatic control, making it a plug-and-play solution.

Vacuum pump is not included. You can order Vacuum pump with additional cost.

Technical Specifications

SKU# MA0608
Chamber Size ~Ø 150*90 mm
Chamber Material Quartz Glass
Pumping Speed > 2 m3/h
Pumping Time < 1 mins
Ultimate Vacuum < 2 Pa
Working Pressure 10-100 Pa
Gas Control Constant pressure closed loop control
Operation Method  Touch Screen Control
Weight  about 20 kg
Dimension 400*310*370 mm
Supply Voltage 110V (220V, other voltages are available upon request)
Power Consumption < 500 W
Cooling Method Air cooled
Warranty One-year limited warranty with lifetime product support
