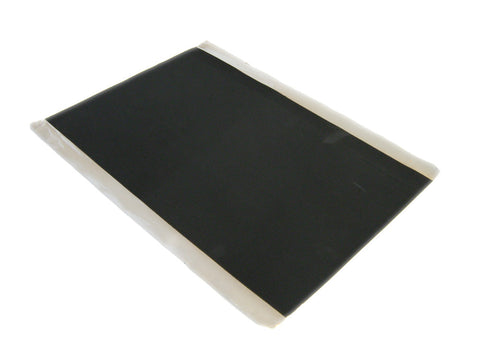

MSE PRO Double Sides Lithium Nickel Manganese Cobalt Oxide (NMC622) Coated Aluminum Foil For Battery Research
MSE PRO™ Double Sides Lithium Nickel Manganese Cobalt Oxide (NMC622) Coated Aluminum Foil For Battery Research
Product Details:
Lithium Nickel Manganese Cobalt Oxide, LiNixMnyCozO2 (NMC) (x+y+z=1) has high capacity and power density, makes them ideal for the new generation of electric vehicles. Compared with LiCoO2, the introduction of Ni and Mn improves the electrochemical performance and reduces the cost. It has the lowest self-heating rate out of the different types of lithium ion batterie cathode. It is commonly used for electric vehicles, energy storage and personal electronics. This LiNi0.6Mn0.2Co0.2O2 coated aluminum foil can be used as cathode for coin cell and pouch cell.
This LiNi0.6Mn0.2Co0.2O2 coated aluminum foil can be customized upon request, such as coating thickness/width, and aluminum foil thickness/width. Please contact us to provide your requirements.
|
Specifications |
|
| Product SKU# | BR0430 |
| Pack Size |
5 sheets/pack |
| Substrate material | Aluminum (≥99.5% purity) |
| Substrate thickness | 14 µm |
| Substrate size | 260x230 mm |
| Coating material | NMC622, LiNi0.6Mn0.2Co0.2O2 |
| Coating area | 260x200 mm |
| Coating side | Two sides |
| Coating density | 21.6 mg/cm2 |
| Capacity | 170 mAh/g |
| Total thickness | 103 um |
Please vacuum dry the sheets before use to ensure the best performance.
Q&A:
Q: How do I customize electrode sheet?
A: Please refer to our article of electrode sheet customization:
https://www.msesupplies.com/blogs/news/how-to-customize-your-electrode-sheet
