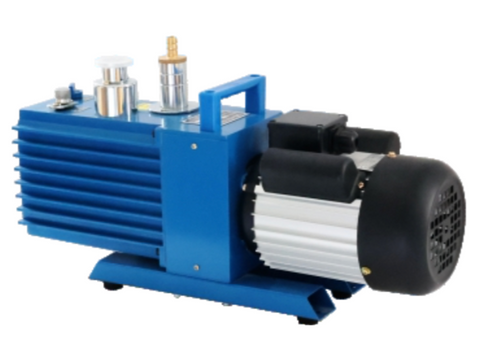

MSE PRO Direct Drive Rotary Vane Vacuum Pump (Basic)
SKU: MA0753
MSE PRO™ Direct Drive Rotary Vane Vacuum Pump (Basic)
MSE Supplies offer Direct Drive Rotary Vane Vacuum Pumps (Basic) with different pumping speed options. They are a type of mechanical vacuum pump for pumping air from sealed vessels. They operate based on the positive displacement principle and is known for its simplicity and reliability. "Direct Drive" refers to the direct coupling of the pump's rotor to the motor shaft, which eliminates the need for belts or other transmission components. Direct drive rotary vane vacuum pumps can be used alone or used as process pump, diffusion pump, molecular pump, etc. They are widely used for aerospace, semiconductor, coating, food packaging, and many other industries.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Applications
- Analytical instruments
- Laboratory bench top vacuum
- Leak detectors, helium
- Research and development
- Coating technology
Technical Data:
| SKU# | MA0753 | MA0754 | MA0755 |
| Dimension (mm) | 403×130×240 | 447x168x260 | 469x168x260 |
| Pumping speed 50Hz (m3/h) | 0.9 | 1.8 | 3.6 |
| Pumping speed 60Hz (m3/h) | 1.1 | 2.1 | 4.3 |
| Voltage | 220V (110V optional) | ||
| Motor power (kW) | 0.12 | 0.18 | 0.25 |
| Ultimate partial pressure (mbar/Torr) |
6 x 10-3 / 4.5 x 10-3 |
6 x 10-4 / 4.5 x 10-4 | 6 x 10-4 / 4.5 x 10-4 |
| Ultimate total pressure (mbar/Torr) | 6.5 x 10-2 / 4.8 x 10-2 | 1.3 x 10-2 / 9.7 x 10-3 | 1.3 x 10-2 / 9.7 x 10-3 |
| Motor speed (50Hz/60Hz) (rpm) | 1400 / 1720 | ||
| Inlet diameter (mm） | φ15 | φ20(KF16) | φ20(KF16) |
| Oil capacity (L) | 0.5 |
0.6 |
0.7 |
| Weight (kg) | 16 | 17 | 18 |
