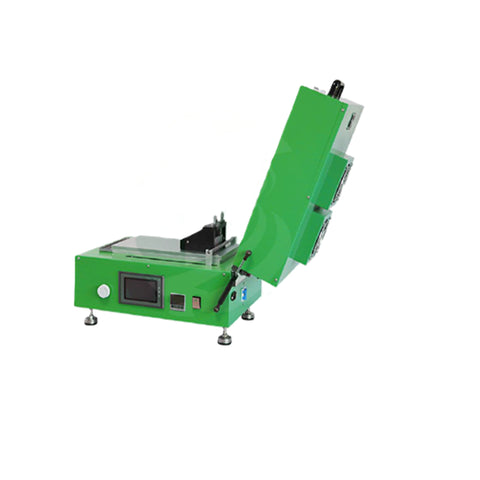

MSE PRO Desktop Slot Die Coating Machine
SKU: MA0065477
MSE PRO™ Desktop Slot Die Coating Machine
MSE PRO™ Desktop Slot Die Coating Machine Adopt slot die extrusion coating method (the coating process such as scraper coating, four-side coating device and wire rod coating can be selected). Mainly used for sheet type material surface coating of lithium battery substrate coating, solar photovoltaic film and polymer conductive film, OLED and other fields.
Features:
- Adopt extrusion coating process, high coating accuracy and good consistency.
- Injection pump feeding, feeding system closed, no external interference, paint demand and wasteless.
- Coated substrate is vacuum suction plate, built-in vacuum pump.
- Easy to disassemble and clean the coating mold and feeding system.
- Adopt large area uniform heating to ensure high precision uniform temperature inside the cavity.
- Flat coating, motor driven scraper coating, coating speed is stable and adjustable.
- Can be used in the glove box, easy to operate, small size, save space.
- PLC. Touch screen control, equipment parameters adjustment, storage, control convenient and fast.
Specifications:
| Model | MA0065477 |
| Voltage | AC110V-220V, 50/60Hz, Single Phase |
| Coating method | Slot die flat plate film coating, standard equipped with TOB-JY100 Slot die film applicator |
| Coating stroke | About 250mm Stroke with step-less set and adjusted in the touch screen |
| Coating drive | Motor drive, coating speed with step-less set and adjusted in the touch screen |
| Coating speed | 0.5～20mm/s |
| Vacuum plate | Aluminum plate with vacuum |
| Vacuum plate dimension | L365mm×W200mm×H32mm |
| Film applicator thickness adjust range | 0～5mm adjustable |
| Injection volume | Stainless steel injection syringe: max 60ml |
| Feeding speed | 0.05-5mm/s (Piston speed of injection syringe) |
| Accuracy | ±3μm, optional 1μm digital dial meter |
| Heating drying system | Room temperature-130℃, digital display temperature controller, accuracy ±1℃ |
| Machine dimension | L560mm×W420mm×H370mm |
| Machine weight | About 65kg |
| Remark | Including built-in oil-less vacuum pump |
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Coating Machines. Please contact us for more information.
