MSE PRO Customized Diamond Cut-off Wheels

To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

MSE Supplies offers various Diamond Cut-off Wheels with different diameters and thicknesses. These cut-off wheels are compatible with a variety of Abrasive Cutting Machines. Selecting the right cut-off wheel ensures freedom from burn and distortion and is the best way to save time and consumables. Correct cutting produces specimens in perfect conditions for the following preparation steps. Diamond Cut-off Wheels are used to cut super hard materials since they are the hardest materials in the world.

Several factors are essential for choosing the appropriate blade. These include: diamond concentration (low and high), diamond bond (metal plate), diamond size (fine or medium), blade diameter and blade thickness. The diamond concentration is important because it directly affects the load applied during cutting. For example, brittle materials such as ceramics require higher effective loads to section, whereas ductile materials such as metals require more cutting points. The result is that low concentration blades are recommended for sectioning hard brittle materials such as ceramics while high concentration blades are recommended for ductile materials containing a large fraction of metal or plastic. Metal bonded wheels are used for cutting brittle materials, such as ceramics or minerals, while resin bonded wheels are used for more ductile materials, such as sintered carbides or composites containing predominantly hard phases.

Available Specifications:

Please contact us so we can help you choose appropriate consumable according to your needs.

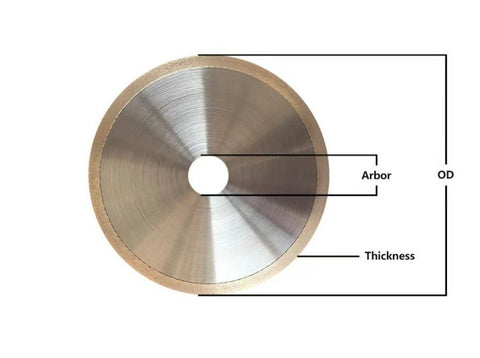

SKU OD (mm) Thickness (mm) Arbor Size
LS1407 60 0.2-2.0 Customized
LS1408 76 0.2-2.0 Customized
LS1409 80 0.2-2.0 Customized
LS1410 100 0.2-2.0 Customized
LS1411 110 0.3-2.0 Customized
LS1412 125 0.3-2.0 Customized
LS1413 140 0.3-2.0 Customized
LS1414 150 0.3-2.0 Customized
LS1415 160 0.3-2.0 Customized
LS1416 180 0.8-2.0 Customized
LS1417 200 0.8-2.0 Customized
LS1418 250 1.2-2.0 Customized
LS1419 300 1.4-2.0 Customized
LS1420 350 2.2-3.0 Customized
LS1421 400 2.2-3.0 Customized
