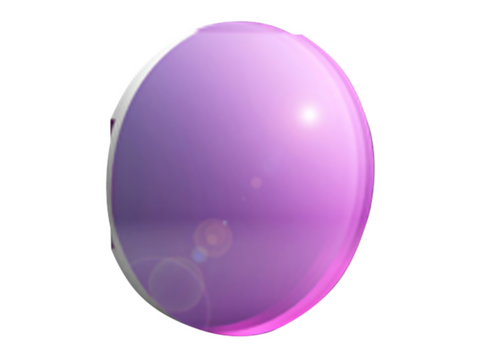

MSE PRO Compound Zero Order Waveplates, Quarter or Half Retardance
SKU: CZOW-2-355-12.7
MSE PRO™ Compound Zero Order Waveplates, Quarter or Half Retardance
MSE Supplies offers zero order waveplates made of durable quartz crystals with retardance of λ/2 and λ/4. Compound Zero Order Waveplates consist of two multistage wave plates that are combined together. This combination helps to minimize the impact of temperature on the wave plate, it also increases the wave plate's sensitivity to wavelength and incidence angle. By utilizing different wafer thicknesses, we can achieve the desired phase retardation. The waveplates are categorized by their structure, which includes multiple-order, compound zero-order, and true zero-order waveplates.
Technical Data:
| Material | Quartz |
| Parallelism | <1'' |
| Diameter | 12.7-25.4mm |
| Diameter Tolerance | +0/-0.1mm |
| Central Wavelength (CWL) | 355-1550nm |
| Retardance Tolerance | λ/500 |
| Surface Quality | 20/10 |
| Transmitted Wavefront Error (TWE) | λ/8@633nm |
| Clear Aperture | Central 90% |
| AR | R<0.2%@Designed Wavelength |
MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
